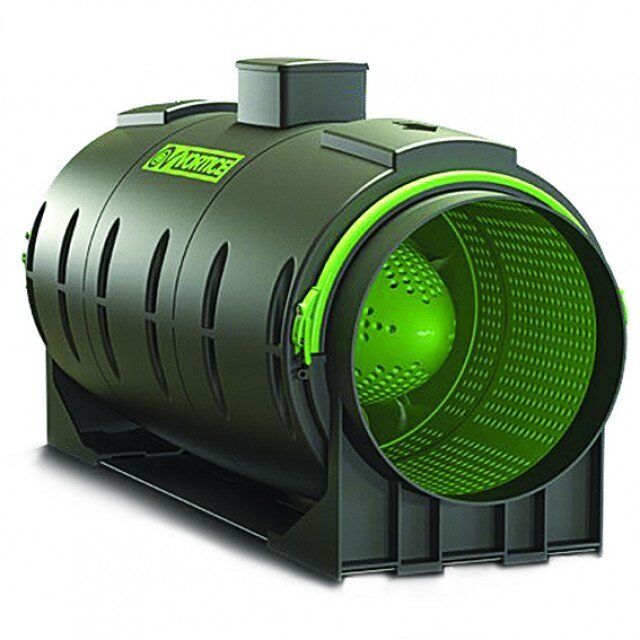

Allvent Vortice Lineo Quiet ES 250MM EC Inline Fan

The Vortice Lineo 250 Quiet ES ALV17175 is a high-performance 250mm EC inline ventilation fan designed for larger commercial and demanding ducted ventilation systems where strong airflow, reduced noise and efficient speed control are important. It uses a Vortice EC brushless motor with thermal overload protection, a ball-bearing shaft and mixed-flow axial-centrifugal impeller to provide efficient ventilation performance across multiple control voltages. Its removable design helps simplify maintenance, while the ball-bearing motor is designed for at least 30,000 hours of operation without mechanical malfunction.

  • Series Lineo Quiet ES
  • 250mm inline fan
  • EC brushless motor
  • 240V
  • Multi-speed 4V, 6V, 8V and 10V control
  • Motor power 20W at 4V
  • Motor power 35W at 6V
  • Motor power 75W at 8V
  • Motor power 125W at 10V
  • Current 0.19A at 4V
  • Current 0.28A at 6V
  • Current 0.60A at 8V
  • Current 0.97A at 10V
  • Speed 1365 RPM at 4V
  • Speed 1680 RPM at 6V
  • Speed 2250 RPM at 8V
  • Speed 2680 RPM at 10V
  • Airflow 750 m³/h at 4V
  • Airflow 940 m³/h at 6V
  • Airflow 1,250 m³/h at 8V
  • Airflow 1,485 m³/h at 10V
  • Maximum airflow 412.4 L/s
  • Maximum pressure 367.8Pa
  • Sound level from 24.7dBA to 41dBA at 3m
  • Maximum operating temperature 50°C
  • Weight 13.4kg
  • Thermal overload cutout
  • Mixed-flow axial-centrifugal impeller
  • Designed to fit into compact spaces
  • Removable design for easier maintenance
  • Optimised airflow and efficiency
  • Designed for minimal noise emissions
  • Ball-bearing motor
  • Motor designed for at least 30,000 hours of operation without mechanical malfunction
  • Suitable for larger ducted ventilation systems
  • Suitable for commercial ventilation applications
  • Suitable for light industrial ventilation applications

Click here for Data Sheet

SKU ALV17175
Brand Allvent
