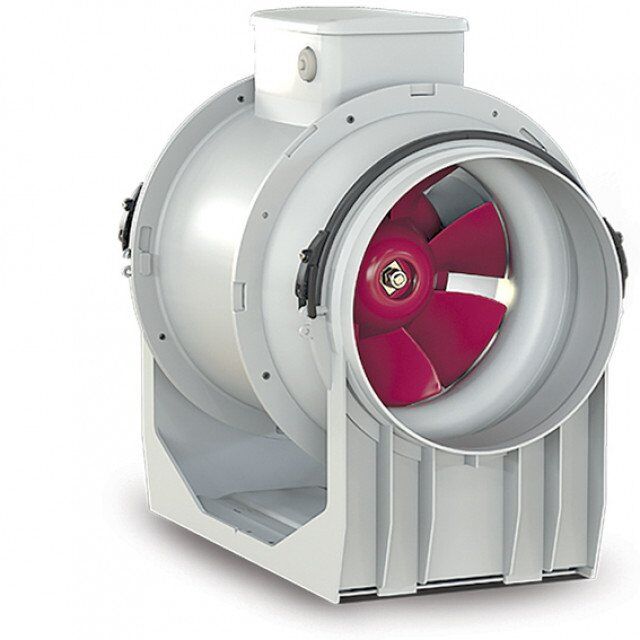

Allvent Vortice Lineo 150MM Two Speed Inline Fan

The Vortice Lineo 150 ALV17146 is a 150mm two-speed inline ventilation fan designed for ducted systems where strong airflow, pressure performance and efficient operation are required. Its compact removable design helps simplify installation and maintenance, while the long-life ball-bearing motor is designed for virtually maintenance-free operation. With airflow up to 550 m³/h and maximum pressure up to 264.9Pa, it is well suited to residential, commercial and light industrial ventilation systems with more demanding duct runs.

  • Series Lineo
  • 150mm inline fan
  • Two speed operation
  • 220-240V
  • 50/60Hz
  • Low speed motor power 40W
  • High speed motor power 58W
  • Low speed current 0.18A
  • High speed current 0.26A
  • Low speed 1580 RPM
  • High speed 2100 RPM
  • Low speed airflow 385 m³/h
  • High speed airflow 550 m³/h
  • Low speed airflow 106.9 L/s
  • High speed airflow 152.8 L/s
  • Maximum pressure 206Pa low speed
  • Maximum pressure 264.9Pa high speed
  • Sound level 41.4dBA at 3m low speed
  • Sound level 50.5dBA at 3m high speed
  • Maximum operating temperature 60°C
  • Weight 2.4kg
  • Designed to fit into small spaces
  • Removable design for easier maintenance
  • Optimised airflow and efficiency
  • Minimal noise emissions
  • High flow rates
  • Long-life ball-bearing motor
  • Timer model available separately
  • Suitable for ducted ventilation systems
  • Suitable for residential ventilation applications
  • Suitable for commercial ventilation applications
  • Suitable for light industrial ventilation applications

Click here for Data Sheet

SKU ALV17146
