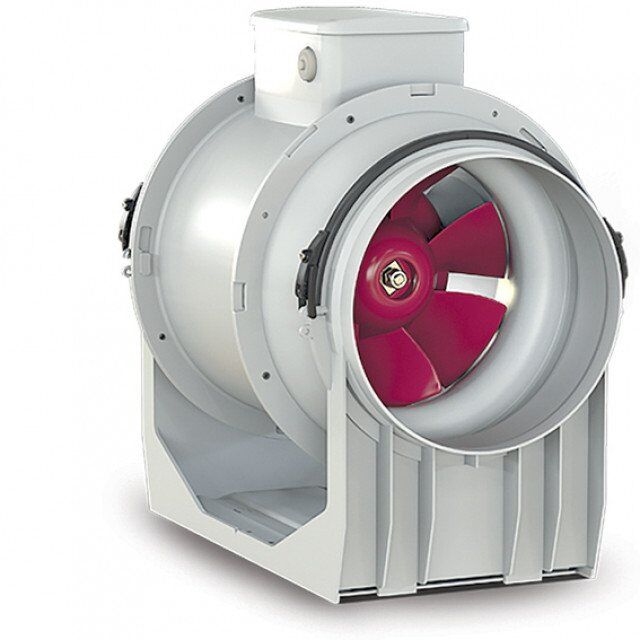

Allvent Vortice Lineo 200MM Three Speed Inline Fan

The Vortice Lineo 200 ALV17180 is a high-performance 200mm three-speed inline ventilation fan designed for commercial and demanding ducted ventilation systems. Its compact removable design helps simplify installation and maintenance, while the long-life ball-bearing motor is engineered for efficient, virtually maintenance-free operation. With airflow up to 1,135 m³/h and maximum pressure up to 294.2Pa, it is well suited to larger duct runs requiring strong airflow and pressure performance.

Series Lineo
200mm inline fan
Three speed operation
220-240V
50/60Hz
Low speed motor power 80W
Medium speed motor power 95W
High speed motor power 110W
Low speed current 0.34A
Medium speed current 0.42A
High speed current 0.49A
Low speed 1925 RPM
Medium speed 2450 RPM
High speed 2710 RPM
Low speed airflow 815 m³/h
Medium speed airflow 1,025 m³/h
High speed airflow 1,135 m³/h
Low speed airflow 226.4 L/s
Medium speed airflow 284.7 L/s
High speed airflow 315.3 L/s
Maximum pressure 210.9Pa low speed
Maximum pressure 267.7Pa medium speed
Maximum pressure 294.2Pa high speed
Maximum operating temperature 50°C
Weight 4.9kg
Designed to fit into small spaces
Removable design for easier maintenance
Optimised airflow and efficiency
Minimal noise emissions
High flow rates
Long-life ball-bearing motor
Suitable for larger ducted ventilation systems
Suitable for commercial ventilation applications
Suitable for light industrial ventilation applications

Click here for Data Sheet

SKU	ALV17180
Brand	Allvent
