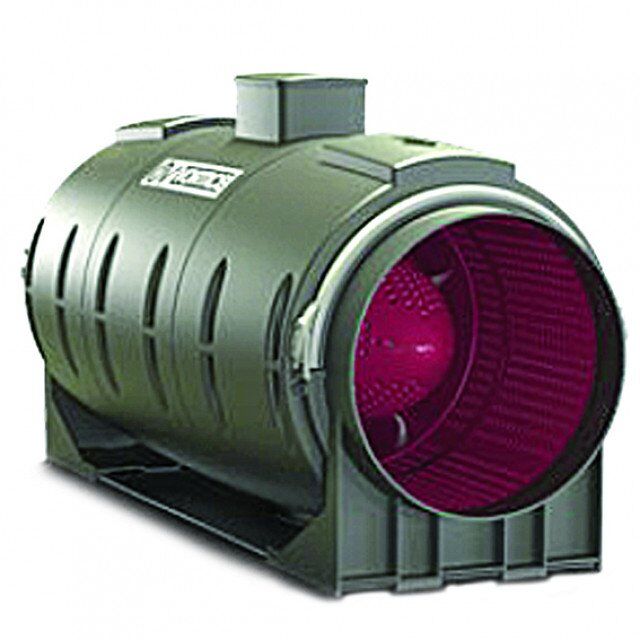

Allvent Vortice Lineo Quiet 315MM Three Speed Low Noise Inline Fan

The Vortice Lineo 315 Quiet ALV17166 is a high-capacity 315mm three-speed inline ventilation fan designed for demanding commercial and larger ducted ventilation systems where strong airflow and reduced noise are important. It uses a Vortice AC motor with a ball-bearing shaft and mixed-flow axial-centrifugal impeller to optimise airflow, performance and efficiency. The removable fan body helps simplify maintenance, while the ball-bearing motor is designed for at least 30,000 hours of operation without mechanical malfunction.

• Series Lineo Quiet
• 315mm inline fan
• Three speed operation
• 220-240V
• 50/60Hz
• Low speed motor power 215W
• Medium speed motor power 270W
• High speed motor power 360W
• Low speed current 0.95A
• Medium speed current 1.15A
• High speed current 1.55A
• Low speed 1930 RPM
• Medium speed 2360 RPM
• High speed 2705 RPM
• Low speed airflow 2,070 m³/h
• Medium speed airflow 2,530 m³/h
• High speed airflow 2,890 m³/h
• Low speed airflow 575 L/s
• Medium speed airflow 702.8 L/s
• High speed airflow 802.8 L/s
• Maximum pressure 300.1Pa low speed
• Maximum pressure 424.6Pa medium speed
• Maximum pressure 525.7Pa high speed
• Maximum operating temperature 50°C
• Weight 28.3kg
• Designed to fit into compact spaces
• Removable design for easier maintenance
• Mixed-flow axial-centrifugal impeller
• Optimised airflow and efficiency
• Designed for minimal noise emissions
• Ball-bearing AC motor
• Motor designed for at least 30,000 hours of operation without mechanical malfunction
• Suitable for larger ducted ventilation systems
• Suitable for commercial ventilation applications
• Suitable for light industrial ventilation applications
