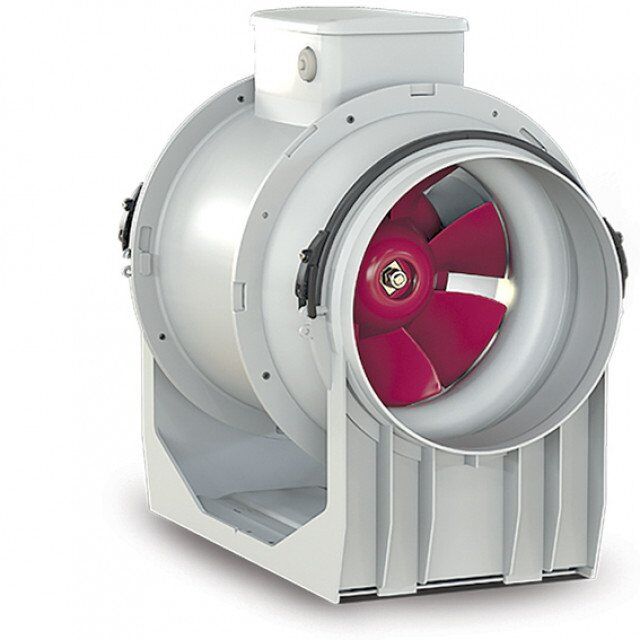

Allvent Vortice Lineo 100MM Two Speed Inline Fan

The Vortice Lineo 100 ALV17144 is a compact 100mm two-speed inline ventilation fan designed to fit into tight spaces while delivering strong airflow and pressure performance. The Lineo range is engineered for optimised airflow, increased efficiency and minimal noise emissions, with a long-life ball-bearing motor designed for virtually maintenance-free operation. Its removable fan body also helps simplify servicing and maintenance in ducted residential and commercial ventilation systems.

  • Series Lineo
  • 100mm inline fan
  • Two speed operation
  • 220-240V
  • 50/60Hz
  • Low speed motor power 20W
  • High speed motor power 23W
  • Low speed current 0.09A
  • High speed current 0.11A
  • Low speed 1860 RPM
  • High speed 2450 RPM
  • Low speed airflow 180 m³/h
  • High speed airflow 255 m³/h
  • Low speed airflow 50 L/s
  • High speed airflow 70.8 L/s
  • Maximum pressure 127.5Pa low speed
  • Maximum pressure 161.9Pa high speed
  • Sound level 30.7dBA at 3m low speed
  • Sound level 39.4dBA at 3m high speed
  • Maximum operating temperature 60°C
  • Weight 1.8kg
  • Designed to fit into small spaces
  • Removable design for easier maintenance
  • Optimised airflow and efficiency
  • Minimal noise emissions
  • High flow rates
  • Long-life ball-bearing motor
  • Suitable for ducted ventilation systems
  • Suitable for residential and commercial ventilation applications

Click here for Data Sheet

SKU ALV17144
