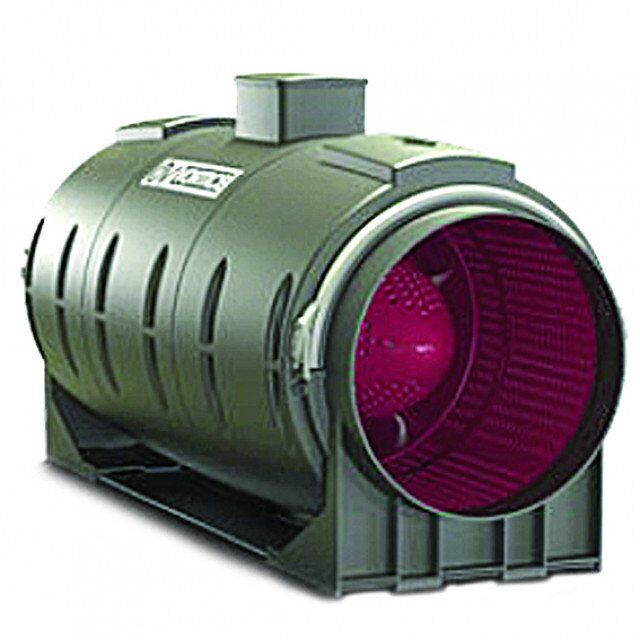

Allvent Vortice Lineo Quiet 150MM Two Speed Low Noise Inline Fan

The Vortice Lineo 150 Quiet ALV17162 is a 150mm two-speed inline ventilation fan designed for applications where low noise, strong airflow and efficient ducted performance are important. It uses a Vortice AC motor with ball-bearing shaft and a mixed-flow axial-centrifugal impeller to optimise airflow, performance and efficiency. The removable fan body helps simplify maintenance, while the ball-bearing motor is designed for at least 30,000 hours of operation without mechanical malfunction.

  • Series Lineo Quiet
  • 150mm inline fan
  • Two speed operation
  • 220-240V
  • 50/60Hz
  • Low speed motor power 24W
  • High speed motor power 37W
  • Low speed current 0.14A
  • High speed current 0.17A
  • Low speed 1040 RPM
  • High speed 1430 RPM
  • Low speed airflow 255 m³/h
  • High speed airflow 350 m³/h
  • Low speed airflow 70.8 L/s
  • High speed airflow 97.2 L/s
  • Maximum pressure 103Pa low speed
  • Maximum pressure 152Pa high speed
  • Maximum operating temperature 55°C
  • Weight 5.4kg
  • Designed to fit into small spaces
  • Removable design for easier maintenance
  • Mixed-flow axial-centrifugal impeller
  • Optimised airflow and efficiency
  • Designed for minimal noise emissions
  • Ball-bearing AC motor
  • Motor designed for at least 30,000 hours of operation without mechanical malfunction
  • Timer model available separately
  • Suitable for ducted ventilation systems
  • Suitable for residential ventilation applications
  • Suitable for commercial ventilation applications

Click here for Data Sheet
