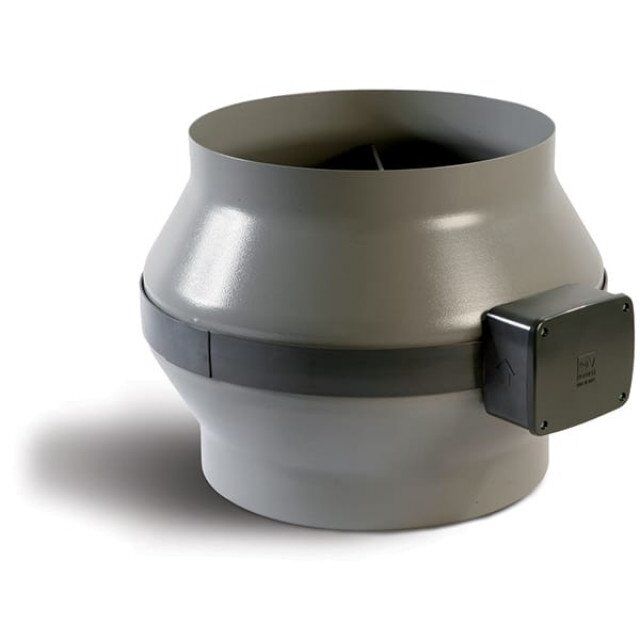

Allvent Vortice 100MM Two Speed Inline Fan

The Vortice CA100MD ALV16150 is a 100mm two-speed inline ventilation fan designed for medium to smaller airflow volumes where higher system resistance is present. It features a polyester powder-coated metal housing, ball-bearing motor and mounting brackets for straightforward installation. With an airflow capacity of up to 340 m³/h and the ability to be mounted in any position, it is suited to residential and light commercial ducted ventilation systems requiring reliable pressure performance.

  • Series CA MD
  • 100mm inline fan
  • Two speed operation
  • 240V
  • 50Hz
  • 85W
  • Airflow 340 m³/h
  • Airflow 94 L/s
  • Sound level 43.2dBA at 3m
  • Designed for medium to smaller airflow volumes against high resistance
  • Polyester powder-coated metal construction
  • Suitable for varying weather conditions
  • Mounting brackets included for easier installation
  • Vortice turbine fan
  • Ball-bearing motor
  • Can be mounted in any position
  • IP44 rated
  • Suitable for residential ducted ventilation
  • Suitable for light commercial ventilation applications

Click here for Data Sheet

SKU ALV16150
Brand Allvent
