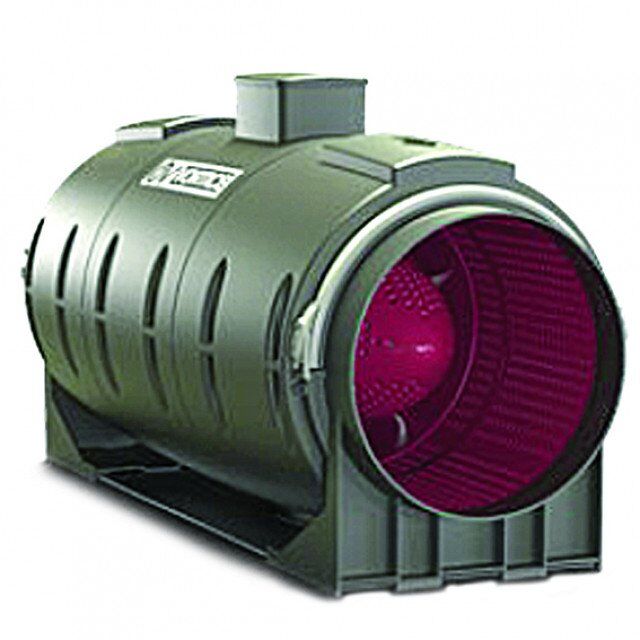

Allvent Vortice Lineo Quiet 100MMTwo Speed Low Noise Inline Fan

The Vortice Lineo 100 Quiet ALV17160 is a compact 100mm two-speed inline ventilation fan designed for applications where low noise, efficient airflow and space-saving installation are important. It uses a Vortice AC motor with ball-bearing shaft and a mixed-flow axial-centrifugal impeller to optimise airflow and performance. The removable fan body helps simplify maintenance, while the ball-bearing motor is rated for at least 30,000 hours of operation without mechanical malfunction.

  • Series Lineo Quiet
  • 100mm class inline fan
  • Two speed operation
  • 220-240V
  • 50/60Hz
  • Low speed motor power 11W
  • High speed motor power 24W
  • Low speed current 0.09A
  • High speed current 0.11A
  • Low speed 1455 RPM
  • High speed 1880 RPM
  • Low speed airflow 150 m³/h
  • High speed airflow 200 m³/h
  • Low speed airflow 41.7 L/s
  • High speed airflow 55.6 L/s
  • Maximum pressure 88.3Pa low speed
  • Maximum pressure 112.8Pa high speed
  • Maximum operating temperature 45°C
  • Weight 3.8kg
  • Designed to fit into small spaces
  • Removable design for easier maintenance
  • Mixed-flow axial-centrifugal impeller
  • Optimised airflow and efficiency
  • Designed for minimal noise emissions
  • Ball-bearing AC motor
  • Motor designed for at least 30,000 hours of operation without mechanical malfunction
  • Timer model available separately
  • Suitable for ducted ventilation systems
  • Suitable for residential ventilation applications
  • Suitable for commercial ventilation applications

Click here for Data Sheet

SKU ALV17160
Brand Allvent
