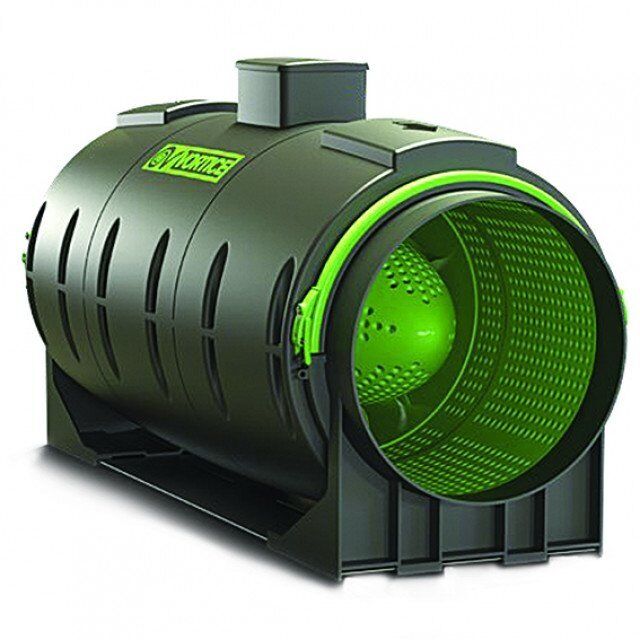

Allvent Vortice Lineo Quiet ES 150MM EC Inline Fan

The Vortice Lineo 150 Quiet ES ALV17172 is a 150mm EC inline ventilation fan designed for applications requiring low noise, efficient airflow and adjustable speed control. It uses a Vortice EC brushless motor with thermal overload protection, a ball-bearing shaft and mixed-flow axial-centrifugal impeller to provide efficient ventilation performance. Its removable design helps simplify maintenance, while the ball-bearing motor is designed for at least 30,000 hours of operation without mechanical malfunction.

  • Series Lineo Quiet ES
  • 150mm inline fan
  • EC brushless motor
  • 240V
  • Multi-speed 4V, 6V, 8V and 10V control
  • Motor power 7.7W at 4V
  • Motor power 10.6W at 6V
  • Motor power 20W at 8V
  • Motor power 31W at 10V
  • Current 0.11A at 4V
  • Current 0.14A at 6V
  • Current 0.24A at 8V
  • Current 0.34A at 10V
  • Speed 1015 RPM at 4V
  • Speed 1240 RPM at 6V
  • Speed 1700 RPM at 8V
  • Speed 2030 RPM at 10V
  • Airflow 250 m³/h at 4V
  • Airflow 305 m³/h at 6V
  • Airflow 430 m³/h at 8V
  • Airflow 515 m³/h at 10V
  • Maximum airflow 143.1 L/s
  • Maximum pressure 237.3Pa
  • Sound level from 13.7dBA to 31dBA at 3m
  • Maximum operating temperature 60°C
  • Weight 5.4kg
  • Thermal overload cutout
  • Mixed-flow axial-centrifugal impeller
  • Designed to fit into small spaces
  • Removable design for easier maintenance
  • Optimised airflow and efficiency
  • Designed for minimal noise emissions
  • Ball-bearing motor
  • Motor designed for at least 30,000 hours of operation without mechanical malfunction
  • Suitable for ducted ventilation systems
  • Suitable for residential ventilation applications
  • Suitable for commercial ventilation applications

Click here for Data Sheet

SKU ALV17172
