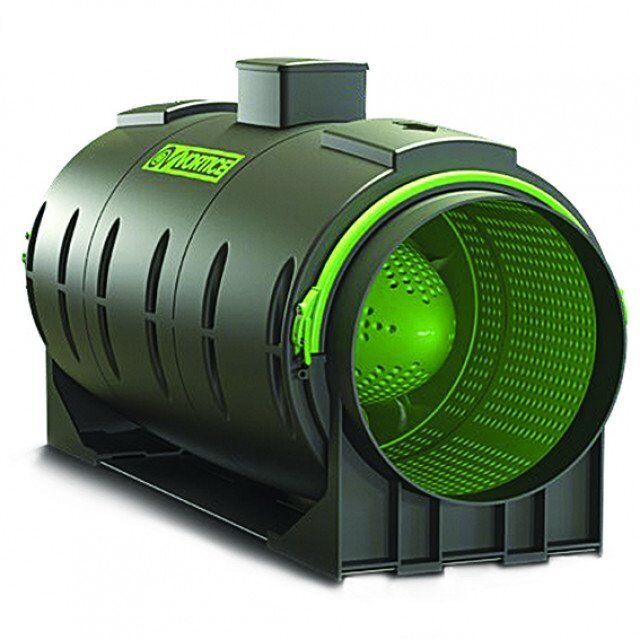

Allvent Vortice Lineo Quiet ES 100MM EC Inline Fan

The Vortice Lineo 100 Quiet ES ALV17170 is a compact 100mm EC inline ventilation fan designed for applications where low noise, efficient airflow and precise speed control are important. It uses a Vortice EC brushless motor with thermal overload protection, ball-bearing shaft and mixed-flow axial-centrifugal impeller to deliver efficient performance across multiple control voltages. Its removable design also helps simplify maintenance, while the ball-bearing motor is designed for at least 30,000 hours of operation without mechanical malfunction.

Series Lineo Quiet ES
100mm inline fan
EC brushless motor
240V
Multi-speed 4V, 6V, 8V and 10V control
Motor power 6.2W at 4V
Motor power 8.3W at 6V
Motor power 14.7W at 8V
Motor power 23W at 10V
Current 0.09A at 4V
Current 0.12A at 6V
Current 0.18A at 8V
Current 0.26A at 10V
Speed 1140 RPM at 4V
Speed 1450 RPM at 6V
Speed 2050 RPM at 8V
Speed 2510 RPM at 10V
Airflow 135 m³/h at 4V
Airflow 175 m³/h at 6V
Airflow 250 m³/h at 8V
Airflow 300 m³/h at 10V
Maximum airflow 83.3 L/s
Maximum pressure 243.2Pa
Sound level from 9.9dBA to 30.9dBA at 3m
Maximum operating temperature 60°C
Weight 3.8kg
Thermal overload cutout
Mixed-flow axial-centrifugal impeller
Designed to fit into small spaces
Removable design for easier maintenance
Optimised airflow and efficiency
Designed for minimal noise emissions
Ball-bearing motor
Motor designed for at least 30,000 hours of operation without mechanical malfunction
Suitable for ducted ventilation systems
Suitable for residential ventilation applications
Suitable for commercial ventilation applications

Click here for Data Sheet

SKU	ALV17170
Brand	Allvent
