Allvent Vortice 200MM Two Speed Inline Fan

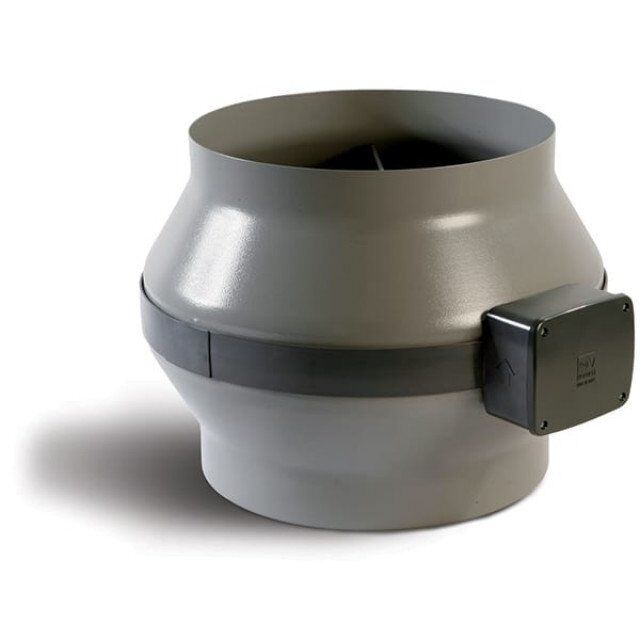

The Vortice CA200MD ALV16155 is a 200mm class two-speed inline ventilation fan designed for medium to smaller airflow volumes where higher duct resistance is present. It features a polyester powder-coated metal housing, mounting brackets and a Vortice turbine fan mounted on a ball-bearing motor. With airflow up to 1,050 m³/h and the ability to be mounted in any position, it is well suited to residential and light commercial ducted ventilation systems requiring strong airflow and reliable pressure performance.

  • Series CA MD
  • 200mm class inline fan
  • 197mm duct diameter
  • Two speed operation
  • 240V
  • 50Hz
  • 155W
  • Airflow 1,050 m³/h
  • Airflow 292 L/s
  • Sound level 49.6dBA at 3m
  • Designed for medium to smaller airflow volumes against high resistance
  • Polyester powder-coated metal construction
  • Suitable for varying weather conditions
  • Mounting brackets included
  • Vortice turbine fan
  • Ball-bearing motor
  • Can be mounted in any position
  • IP44 rated
  • Suitable for residential ducted ventilation
  • Suitable for light commercial ventilation applications

Click here for Data Sheet

SKU ALV16155
Brand Allvent
