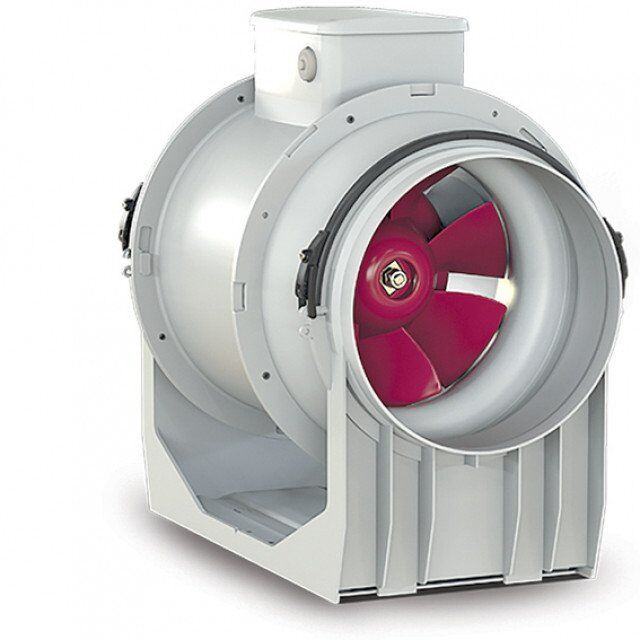

Allvent Vortice Lineo 315MM Three Speed Inline Fan

The Vortice Lineo 315 ALV17182 is a high-capacity 315mm three-speed inline ventilation fan designed for demanding commercial and larger ducted ventilation systems. Its compact removable construction helps simplify servicing, while the long-life ball-bearing motor is designed for reliable, virtually maintenance-free operation. With airflow up to 2,590 m³/h and maximum pressure up to 543.3Pa, it is suited to applications requiring very strong airflow and pressure performance through larger or more restrictive duct runs.

Series Lineo
315mm inline fan
Three speed operation
220-240V
50/60Hz
Low speed motor power 190W
Medium speed motor power 260W
High speed motor power 360W
Low speed current 1.14A
Medium speed current 1.57A
High speed current 1.60A
Low speed 1770 RPM
Medium speed 2300 RPM
High speed 2690 RPM
Low speed airflow 1,590 m³/h
Medium speed airflow 1,590 m³/h
High speed airflow 2,590 m³/h
Low speed airflow 442 L/s
Medium speed airflow 588 L/s
High speed airflow 719 L/s
Maximum pressure 265.8Pa low speed
Maximum pressure 413.9Pa medium speed
Maximum pressure 543.3Pa high speed
Maximum operating temperature 50°C
Weight 9.5kg
Designed to fit into compact spaces
Removable design for easier maintenance
Optimised airflow and efficiency
Minimal noise emissions
High flow rates
Long-life ball-bearing motor
Suitable for larger ducted ventilation systems
Suitable for commercial ventilation applications
Suitable for light industrial ventilation applications

Click here for Data Sheet

SKU	ALV17182
Brand	Allvent
