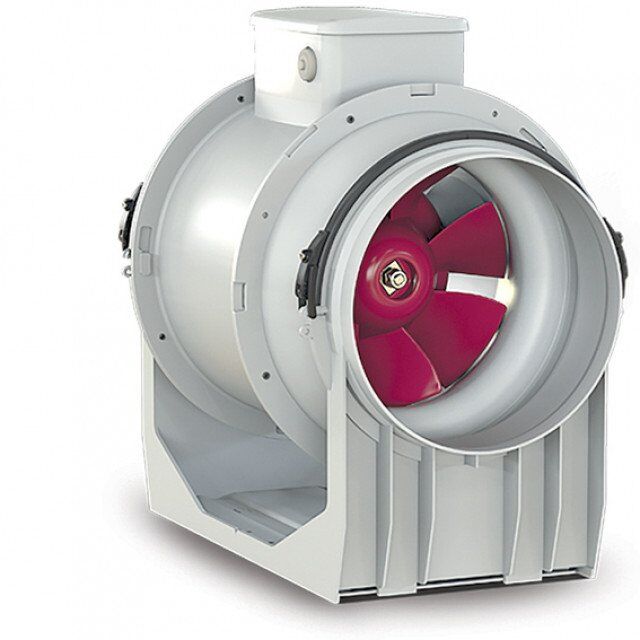

Allvent Vortice Lineo 125MM Two Speed Inline Fan

The Vortice Lineo 125 ALV17145 is a compact 125mm two-speed inline ventilation fan designed for ducted systems where strong airflow, pressure performance and low noise are important. Its removable fan body helps simplify maintenance, while the long-life ball-bearing motor supports reliable, virtually maintenance-free operation. With airflow up to 365 m³/h, the Lineo 125 is well suited to residential and commercial ventilation systems where space is limited but performance is still required.

  • Series Lineo
  • 125mm inline fan
  • Two speed operation
  • 220-240V
  • 50/60Hz
  • Low speed motor power 25W
  • High speed motor power 33W
  • Low speed current 0.11A
  • High speed current 0.15A
  • Low speed 1570 RPM
  • High speed 2140 RPM
  • Low speed airflow 250 m³/h
  • High speed airflow 365 m³/h
  • Low speed airflow 69.4 L/s
  • High speed airflow 101.4 L/s
  • Maximum pressure 127.5Pa low speed
  • Maximum pressure 166.8Pa high speed
  • Sound level 33.9dBA at 3m low speed
  • Sound level 43dBA at 3m high speed
  • Maximum operating temperature 60°C
  • Weight 1.8kg
  • Designed to fit into small spaces
  • Removable design for easier maintenance
  • Optimised airflow and efficiency
  • Minimal noise emissions
  • High flow rates
  • Long-life ball-bearing motor
  • Timer model available separately
  • Suitable for ducted ventilation systems
  • Suitable for residential ventilation applications
  • Suitable for commercial ventilation applications

Click here for Data Sheet

SKU ALV17145
Brand Allvent
