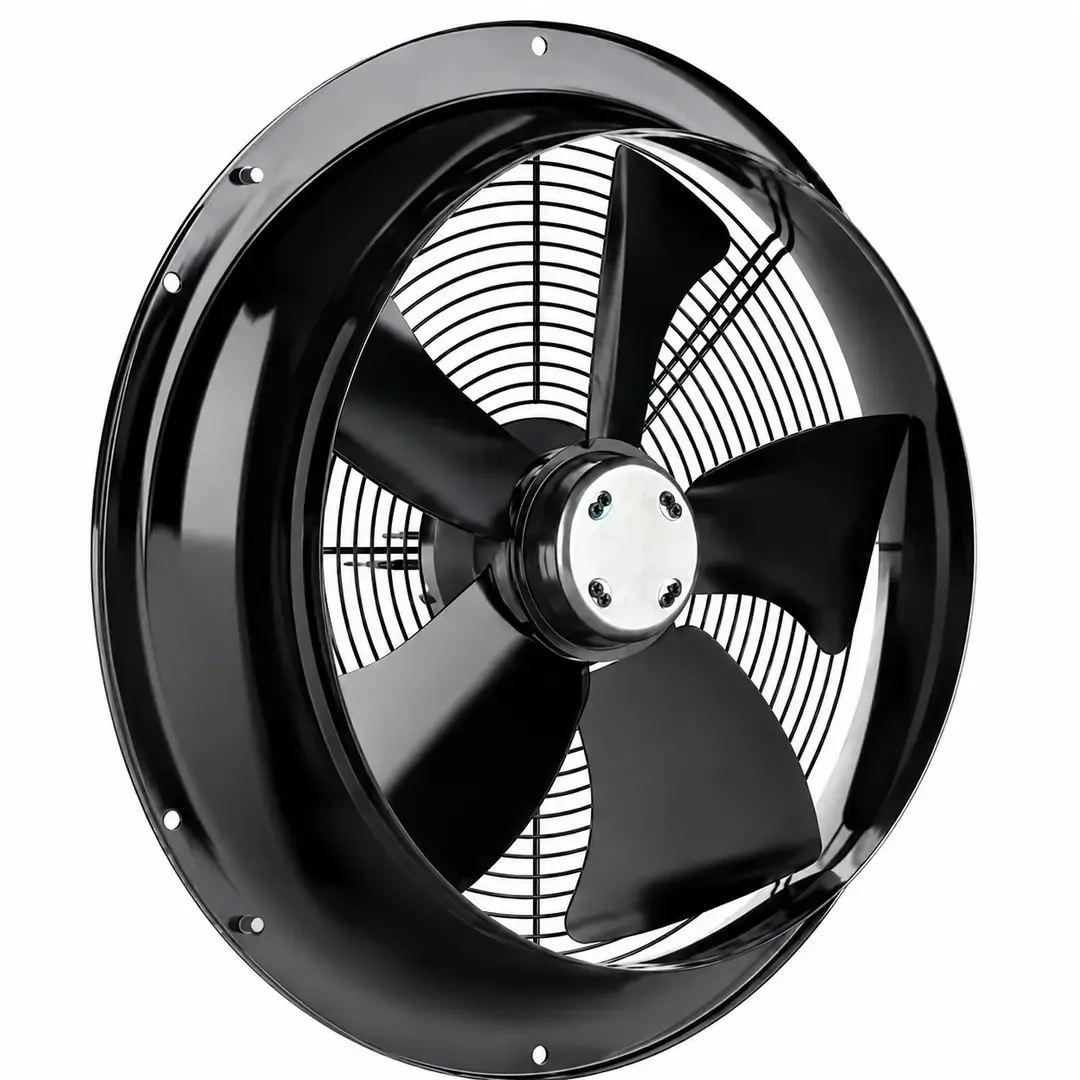

Allvent 250MM Ring Plate Fan

The Allvent ALVRP250-4E ALV5221 is a high-performance 250mm ring plate fan designed for commercial ventilation and equipment cooling applications. With IP44 protection, speed controllability and airflow up to 1,050 m³/h, it is well suited to areas such as ATM rooms, server rooms, plant spaces and other locations requiring reliable continuous air movement. Compatible accessories include speed controllers and an aluminium external grille, allowing the fan to be adapted to different installation requirements.

  • Ring plate fan
  • 250mm size
  • High performance design
  • IP44 rated
  • Speed controllable
  • Suitable for ATM rooms
  • Suitable for server rooms
  • Single phase
  • 240V
  • 4 pole motor
  • Current 0.28A
  • Airflow 1,050 m³/h
  • Airflow 292 L/s
  • Speed 1395 RPM
  • Power 0.063kW
  • Sound level 52dBA
  • Operating temperature range -20°C to +60°C
  • Compatible with speed controllers
  • Compatible with aluminium external grille
  • Suitable for commercial ventilation and equipment cooling applications

Click here for Data Sheet

SKU ALV5221
