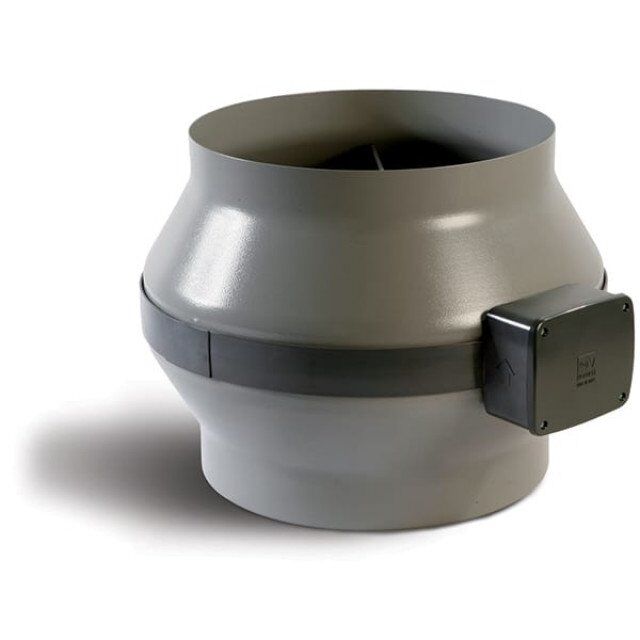

Allvent Vortice 315MM Two Speed Inline Fan

The Vortice CA315MD ALV16157 is a 315mm two-speed inline ventilation fan designed for applications requiring high airflow against elevated duct resistance. It features a polyester powder-coated metal housing, mounting brackets and a Vortice turbine fan mounted on a ball-bearing motor. With airflow up to 1,735 m³/h and flexible mounting in any position, it is suited to larger residential, commercial and light industrial ducted ventilation systems.

  • Series CA MD
  • 315mm inline fan
  • Two speed operation
  • 240V
  • 50Hz
  • 300W
  • Airflow 1,735 m³/h
  • Airflow 481.9 L/s
  • Sound level 65.8dBA at 3m
  • Designed for airflow applications against high resistance
  • Polyester powder-coated metal construction
  • Suitable for varying weather conditions
  • Mounting brackets included
  • Vortice turbine fan
  • Ball-bearing motor
  • Can be mounted in any position
  • IP44 rated
  • Suitable for larger residential ducted ventilation systems
  • Suitable for commercial ventilation applications
  • Suitable for light industrial ventilation systems

Click here for Data Sheet

SKU ALV16157
