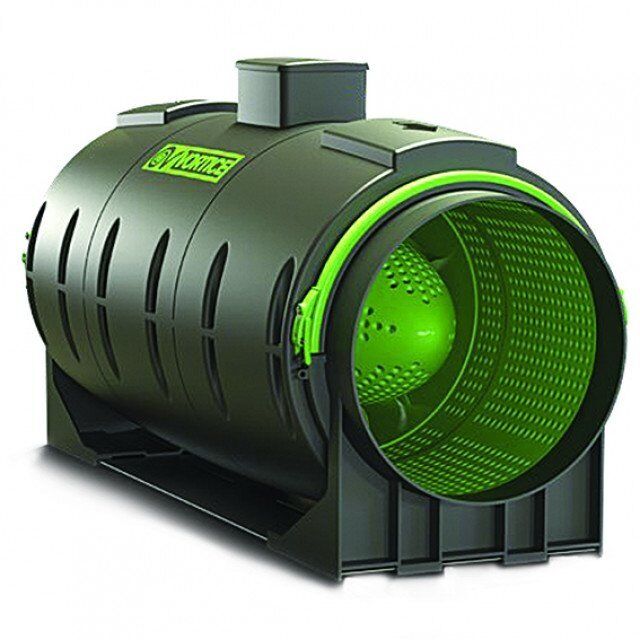

Allvent Vortice Lineo Quiet ES 200MM EC Inline Fan

The Vortice Lineo 200 Quiet ES ALV17174 is a high-performance 200mm EC inline ventilation fan designed for commercial and larger ducted systems where strong airflow, low noise and efficient speed control are important. It uses a Vortice EC brushless motor with thermal overload protection, a ball-bearing shaft and mixed-flow axial-centrifugal impeller to deliver efficient airflow across multiple control voltages. Its removable design helps simplify maintenance, while the ball-bearing motor is designed for at least 30,000 hours of operation without mechanical malfunction.

Series Lineo Quiet ES
200mm inline fan
EC brushless motor
240V
Multi-speed 4V, 6V, 8V and 10V control
Motor power 15.2W at 4V
Motor power 25.3W at 6V
Motor power 52.4W at 8V
Motor power 88W at 10V
Current 0.18A at 4V
Current 0.27A at 6V
Current 0.52A at 8V
Current 0.78A at 10V
Speed 1380 RPM at 4V
Speed 1705 RPM at 6V
Speed 2245 RPM at 8V
Speed 2700 RPM at 10V
Airflow 570 m³/h at 4V
Airflow 720 m³/h at 6V
Airflow 945 m³/h at 8V
Airflow 1,145 m³/h at 10V
Maximum airflow 318.1 L/s
Maximum pressure 329.5Pa
Sound level from 19.7dBA to 35.8dBA at 3m
Maximum operating temperature 50°C
Weight 8.6kg
Thermal overload cutout
Mixed-flow axial-centrifugal impeller
Designed to fit into small spaces
Removable design for easier maintenance
Optimised airflow and efficiency
Designed for minimal noise emissions
Ball-bearing motor
Motor designed for at least 30,000 hours of operation without mechanical malfunction
Suitable for larger ducted ventilation systems
Suitable for commercial ventilation applications
Suitable for light industrial ventilation applications

Click here for Data Sheet

SKU	ALV17174
