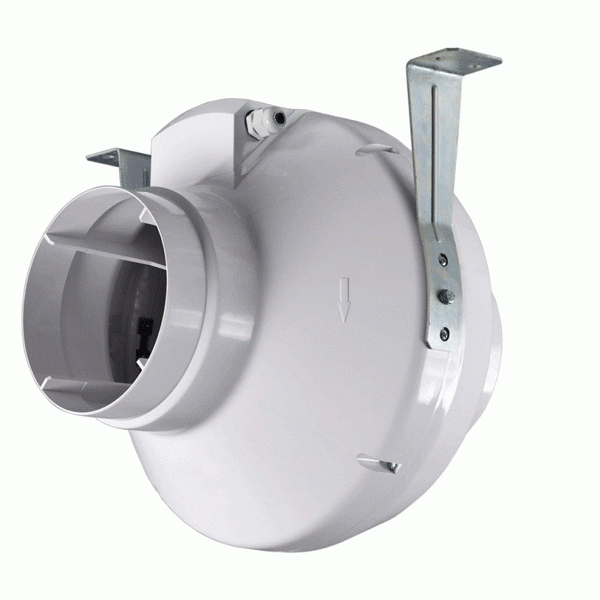

Fanco VK Centrifugal 200 High Pressure Inline Exhaust Fan 200mm

The Fanco EXVUVP200 VK Centrifugal 200 is a high pressure inline exhaust fan designed to deliver powerful airflow for demanding residential and commercial ventilation applications. Part of the VK Centrifugal Series, this model is built for installations where stronger pressure performance is needed, making it well suited to longer duct runs and more challenging exhaust setups. It features a Blauberg Motoren motor and German made construction for dependable everyday operation. The EXVUVP200 operates on 230V and delivers 930m³/hr airflow, 258.54l/s and 547.77CFM. It draws 0.76A, uses 173W of power and produces a noise level of 51dB(A). The specification sheet also notes IPX4 protection, suitability for indoor use, and operating conditions of +1°C to +40°C with relative humidity up to 80%. Its external casing is made from corrosion resistant durable plastic, and the motor includes thermal overheating protection. It can also be used with the ESEEAS speed controller.

  • 200mm high pressure centrifugal inline fan
  • Powerful centrifugal exhaust fan
  • Suitable for residential and commercial ventilation
  • Blauberg Motoren motor
  • German made
  • 230V operation
  • 0.76A current draw
  • 173W power consumption
  • Airflow 930m³/hr
  • Airflow 258.54l/s
  • Airflow 547.77CFM
  • Noise level 51dB(A)
  • 200mm duct size
  • IPX4 rated
  • Corrosion resistant durable plastic casing
  • Thermal overheating protection
  • Compatible with ESEEAS speed controller
  • Dimmer style speed switch compatible
  • Suitable for indoor applications
  • Maximum transferred air temperature 60°C
  • Ambient temperature range +1°C to +40°C
  • Relative humidity up to 80%
  • Dimensions D 200mm
  • Dimensions D1 340mm
  • Dimensions B 354mm
  • Dimensions L 276mm
  • Dimensions L1 30mm
  • Dimensions L2 30mm
  • Dimensions L3 40mm
  • 2 year replacement warranty

Click here for Data Sheet

SKU EXVUVP200
Brand Fanco
