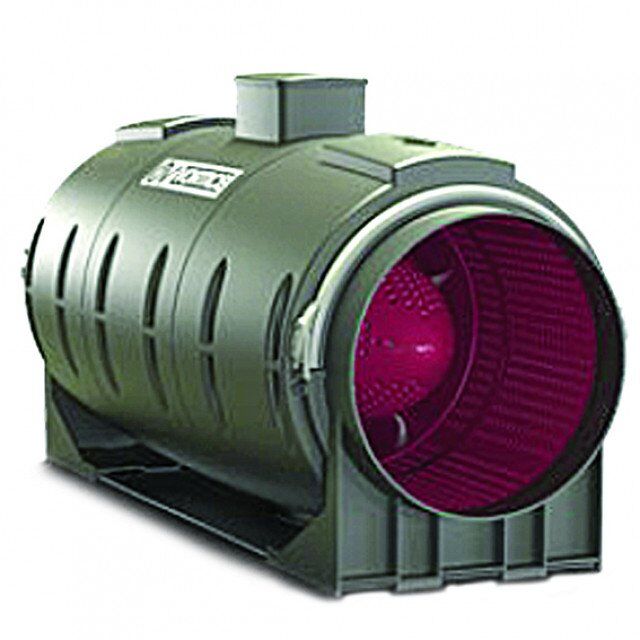

Allvent Vortice Lineo Quiet 200MM Two Speed Low Noise Inline Fan

The Vortice Lineo 200 Quiet ALV17164 is a 200mm two-speed inline ventilation fan designed for commercial and larger ducted systems where strong airflow, pressure performance and reduced noise are important. It uses a Vortice AC motor with ball-bearing shaft and a mixed-flow axial-centrifugal impeller to optimise airflow and efficiency. The removable fan body helps simplify maintenance, while the ball-bearing motor is designed for at least 30,000 hours of operation without mechanical malfunction.

  • Series Lineo Quiet
  • 200mm inline fan
  • Two speed operation
  • 220-240V
  • 50/60Hz
  • Low speed motor power 50W
  • High speed motor power 80W
  • Low speed current 0.34A
  • High speed current 0.42A
  • Low speed 1880 RPM
  • High speed 2380 RPM
  • Low speed airflow 805 m³/h
  • High speed airflow 1,045 m³/h
  • Low speed airflow 223.6 L/s
  • High speed airflow 290.3 L/s
  • Maximum pressure 202Pa low speed
  • Maximum pressure 257.9Pa high speed
  • Maximum operating temperature 50°C
  • Weight 8.6kg
  • Designed to fit into compact spaces
  • Removable design for easier maintenance
  • Mixed-flow axial-centrifugal impeller
  • Optimised airflow and efficiency
  • Designed for minimal noise emissions
  • Ball-bearing AC motor
  • Motor designed for at least 30,000 hours of operation without mechanical malfunction
  • Timer model available separately
  • Suitable for larger ducted ventilation systems
  • Suitable for commercial ventilation applications
  • Suitable for light industrial ventilation applications

Click here for Data Sheet

SKU ALV17164
Brand Allvent
