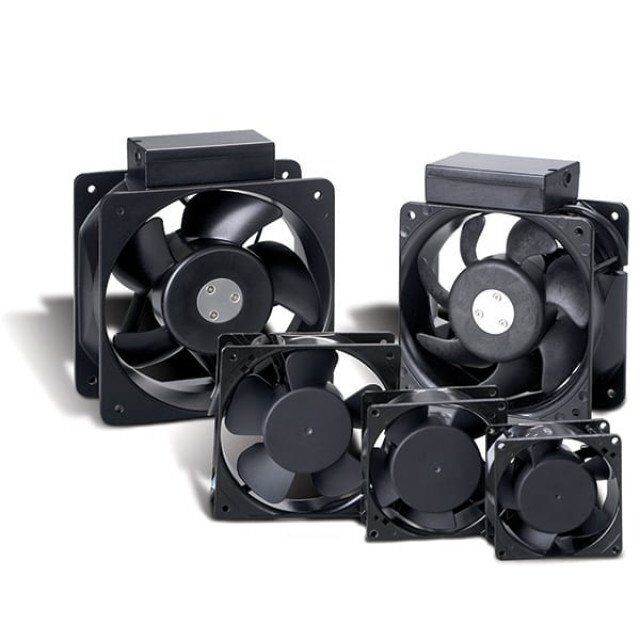

Allvent 120MM Cabinet Fan

The Allvent ALVUF12A23-SWH ALV115 is a 120mm cabinet fan designed for commercial ventilation and equipment cooling applications where dependable continuous airflow is required. It features an aluminium casing, ball-bearing motor and a service life rated at over 40,000 running hours. With airflow up to 156 m³/h and a compact 120 x 120 x 38mm body, it is well suited to electrical cabinets, control panels and enclosed equipment spaces that need reliable heat removal and air circulation.

  • Cabinet fan
  • 120 x 120 x 38mm dimensions
  • 240V
  • 50Hz
  • 17W
  • Single phase
  • Airflow 43 L/s
  • Airflow 156 m³/h
  • Sound level 36dBA at 3m
  • Aluminium casing
  • Ball bearing motor
  • Over 40,000 running hours
  • High quality, proven reliability
  • Metal finger guards available
  • Plastic finger guards available
  • Filters available
  • Suitable for electrical cabinets
  • Suitable for control panels
  • Suitable for equipment cooling applications

Click here for Data Sheet



SKU ALV115
Brand Allvent
