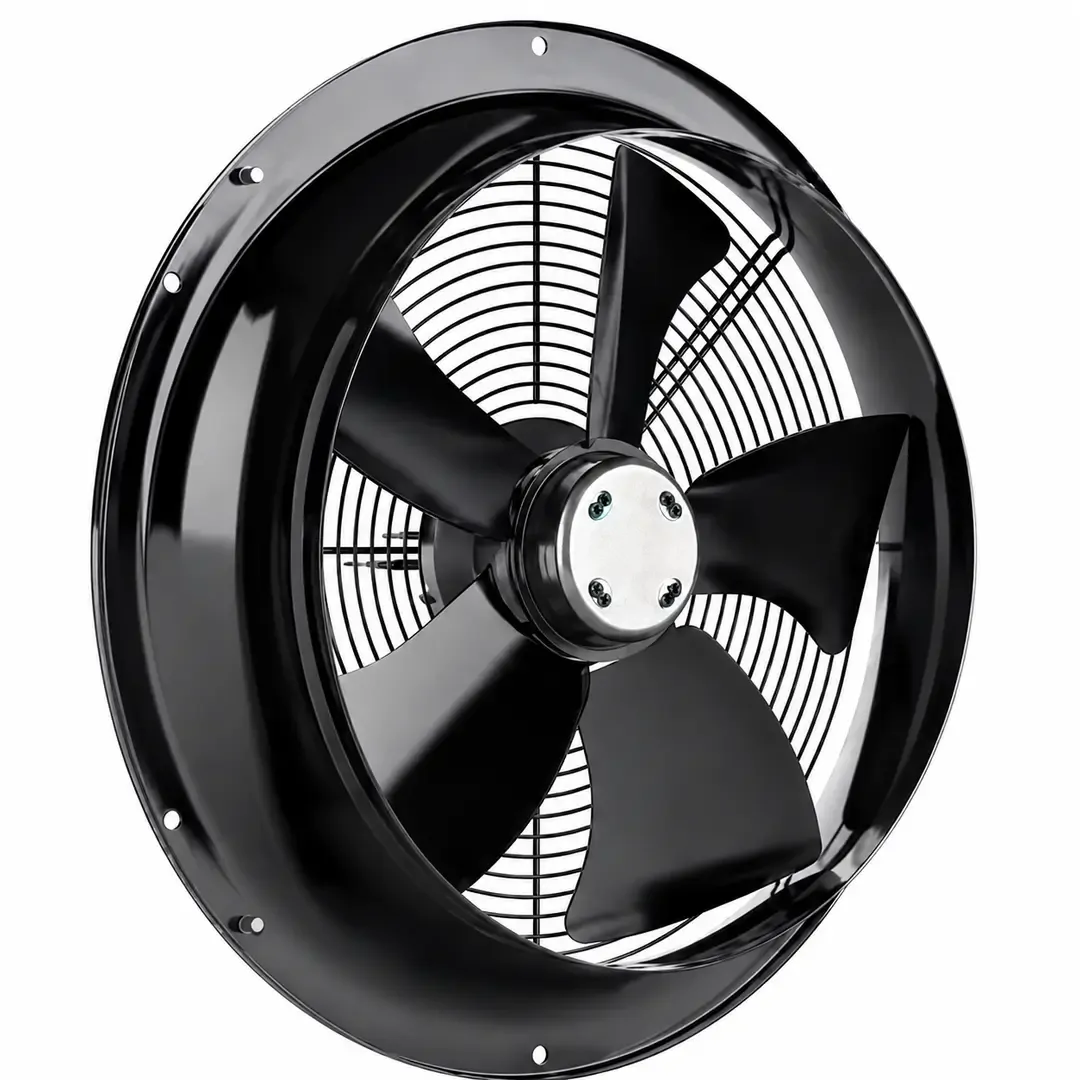

Allvent 350MM Ring Plate Fan

The Allvent ALVRP350-4E ALV5223 is a high-performance 350mm ring plate fan designed for commercial ventilation and equipment cooling applications that require strong, reliable airflow. With IP44 protection, speed controllability and airflow up to 2,525 m³/h, it is well suited to server rooms, ATM rooms, plant areas and other commercial spaces where continuous air movement is important. Compatible speed controllers and an aluminium external grille are also available to suit different installation requirements.

  • Ring plate fan
  • 350mm size
  • High performance design
  • IP44 rated
  • Speed controllable
  • Suitable for ATM rooms
  • Suitable for server rooms
  • Single phase
  • 240V
  • 4 pole motor
  • Current 0.47A
  • Airflow 2,525 m³/h
  • Airflow 701 L/s
  • Speed 1195 RPM
  • Power 0.103kW
  • Sound level 59dBA
  • Operating temperature range -20°C to +70°C
  • Compatible with speed controllers
  • Compatible with aluminium external grille
  • Suitable for commercial ventilation and equipment cooling applications

Click here for Data Sheet

SKU ALV5223
Brand Allvent
