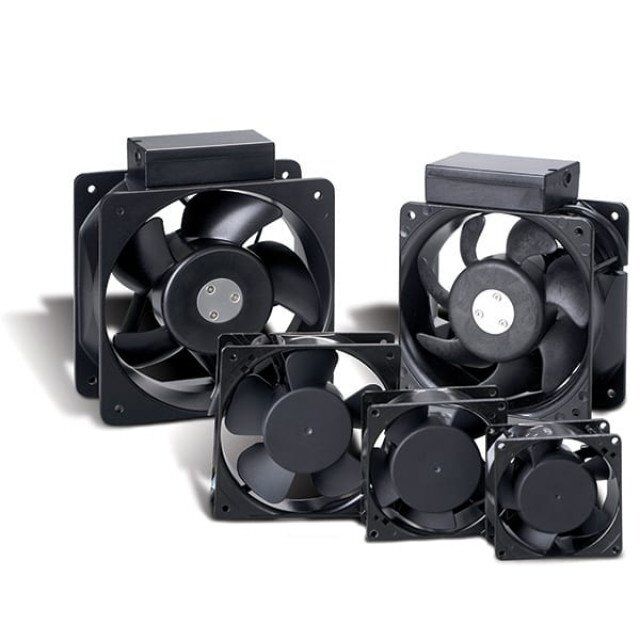

Allvent 160MM Cabinet Fan

The Allvent ALVUF16FC23-BTHD ALV116 is a 160mm cabinet fan designed for commercial ventilation, electrical enclosures and equipment cooling applications that require stronger airflow. It features an aluminium casing, ball-bearing motor and a service life rated at over 40,000 running hours, making it suitable for continuous-duty installations. With airflow up to 450 m³/h, it provides significantly higher air movement than the smaller cabinet fan models and is well suited to larger control panels, electrical cabinets and enclosed equipment spaces.

Cabinet fan
160 x 160 x 62mm dimensions
240V
50Hz
46W
Single phase
Airflow 125 L/s
Airflow 450 m³/h
Sound level 52dBA at 3m
Aluminium casing
Ball bearing motor
Over 40,000 running hours
High quality, proven reliability
Metal finger guards available
Plastic finger guards available
Filters available
Suitable for electrical cabinets
Suitable for control panels
Suitable for larger equipment cooling applications
Suitable for commercial ventilation systems

Click here for Data Sheet

SKU	ALV116
Brand	Allvent
