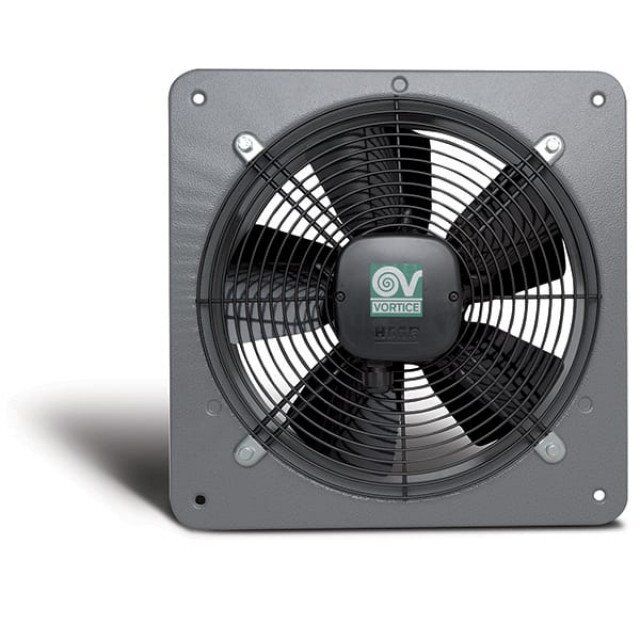

Allvent Vortice 400MM Plate Mounted Axial Fan

The Allvent Vortice A-E404M ALV42260 is a high-capacity plate mounted axial fan designed for commercial and industrial ventilation systems that need strong, reliable air movement. Suitable for wall or panel mounting, it is ideal for warehouses, factories, workshops, plant rooms, mechanical service areas and industrial exhaust or supply air applications. Its compact black pressed steel panel, protective grille and aerodynamically shaped ventilation port give it a tough industrial look, while the single phase motor, thermal overload protection and weather resistant construction make it a practical option for demanding ventilation installations.

Vortice A-E404M compact plate mounted axial fan
Designed for commercial and industrial ventilation applications
Suitable for wall or panel mounting
High airflow capacity of 4310m³/h or 1197L/s
261W power rating and 1.20A current
4 pole motor with 1400 RPM speed
Static pressure 152Pa
Noise level 55.6dBA
Maximum operating temperature 50°C
Black pressed steel panel with durable powder coated finish
5 pressed steel blades with protective coating
Aerodynamically contoured ventilation port helps optimise airflow
Protective grille acts as an anti-bird guard and supports safer operation
Grille can be removed for easier cleaning and maintenance
Single speed single phase AC motor with ball bearings
Thermal overload protection

Click here for Data Sheet

SKU	ALV42260
Brand	Allvent
