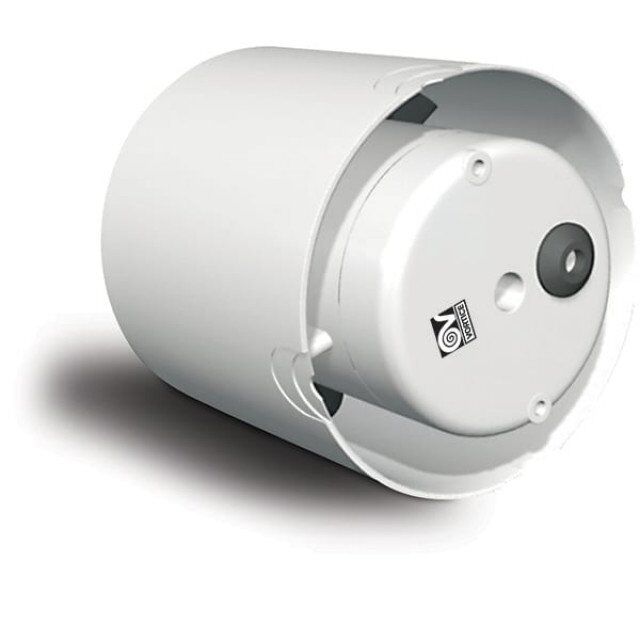

Allvent Vortice Punto Ghost 100MM Inline Fan

The Vortice Punto Ghost MG100/4" LL ALV11100 is a compact 100mm inline ventilation fan designed for residential air transfer and extraction applications. It features a motor with shielded poles and ball bearings, an IPX4 rating and can also be used as a temperature blender between adjacent rooms. Mounting feet are available separately, making it suitable for flexible ducted ventilation installations.

Series Punto Ghost
100mm inline fan
240V
50Hz
Motor power 18W
Current 0.10A
Speed 2415 RPM
Airflow 80 m³/h
Airflow 22.2 L/s
Maximum pressure 25Pa
Sound level 39dBA at 3m
Maximum operating temperature 40°C
Motor with shielded poles
Ball-bearing motor
IPX4 rated
Can be used as a temperature blender between adjacent rooms
Mounting feet available separately
Suitable for residential ventilation applications
Suitable for ducted air transfer and extraction systems

Click here for Data Sheet

SKU	ALV11100
Brand	Allvent
