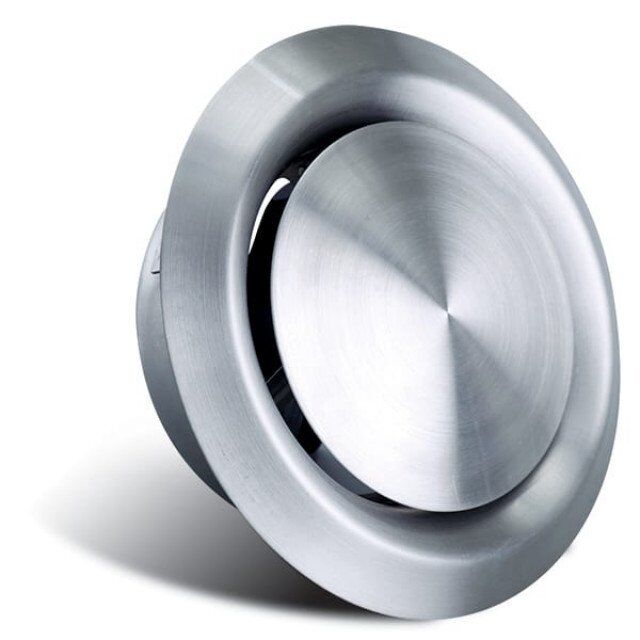

Allvent 100MM Stainless Steel Cone Grille

The Allvent ALV227 is a 100mm stainless steel cone grille designed for ceiling-mounted air intake and extraction applications. Its clean circular form and brushed metal finish give it a neat, professional appearance that suits modern residential, commercial and industrial interiors. The inverted centre cone can be screwed in or out to adjust airflow, while the diffuser design draws air from surrounding surfaces rather than directly below. This makes it a practical choice for bathrooms, laundries, kitchens, utility rooms and other areas requiring heat, smoke or vapour extraction and air transfer.

  • Stainless steel cone grille
  • Suitable for air intake and extraction
  • Adjustable inverted centre cone
  • Designed to accept air from surrounding surfaces
  • Ideal for heat, smoke and vapour extraction or transfer
  • Suitable for ceiling installation
  • Duct size 100mm
  • Overall diameter 140mm
  • Neck diameter 98mm
  • Depth 45mm
  • Flange thickness 9mm

Click here for Data Sheet

SKU ALV227
Brand Allvent
