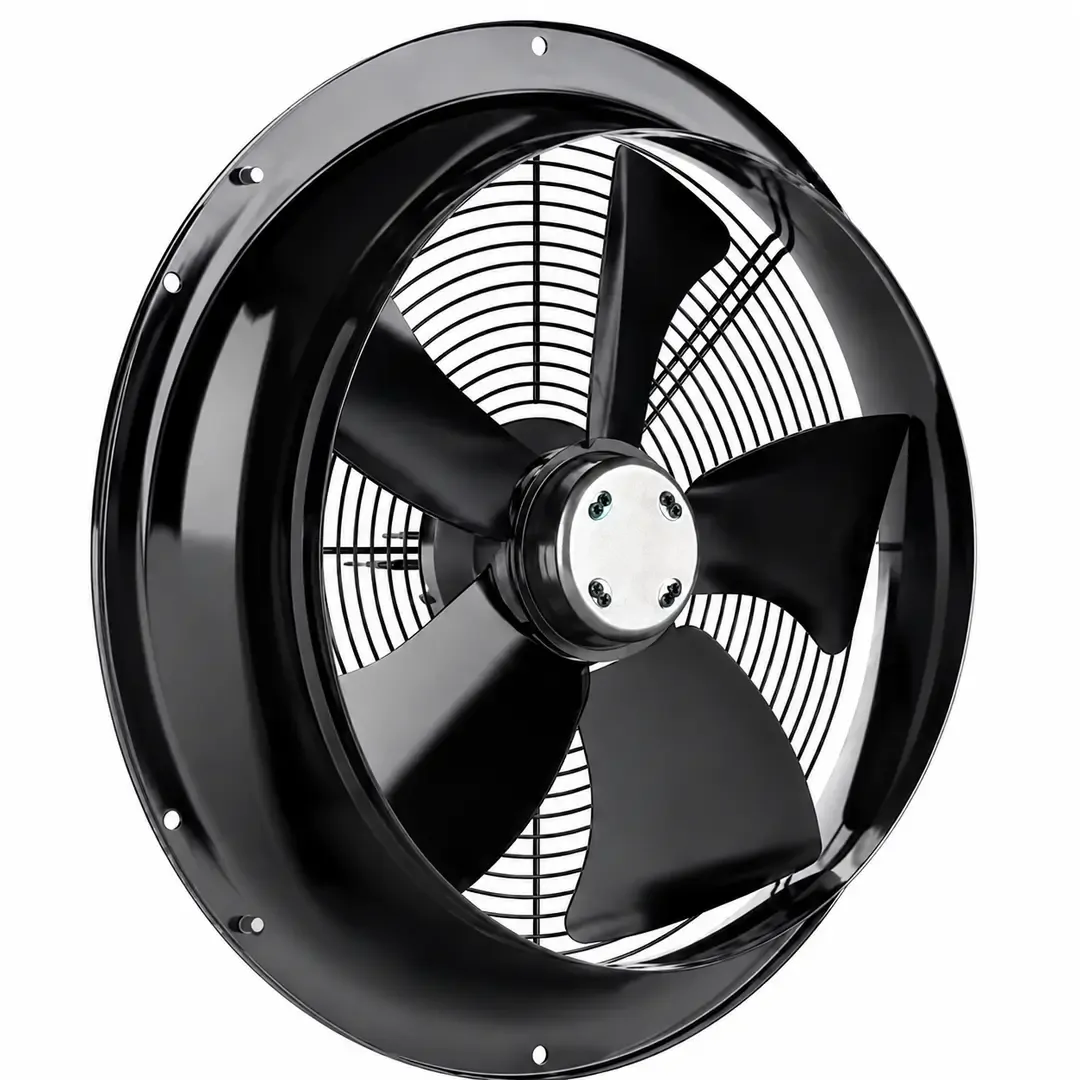

Allvent 300MM Ring Plate Fan

The Allvent ALVRP300-4E ALV5222 is a high-performance 300mm ring plate fan designed for commercial ventilation and equipment cooling applications. With IP44 protection, speed controllability and airflow up to 1,865 m³/h, it is well suited to server rooms, ATM rooms, plant areas and other commercial spaces requiring reliable air movement. The fan can also be paired with compatible speed controllers and an aluminium external grille to suit different installation requirements.

Ring plate fan
300mm size
High performance design
IP44 rated
Speed controllable
Suitable for ATM rooms
Suitable for server rooms
Single phase
240V
4 pole motor
Current 0.41A
Airflow 1,865 m³/h
Airflow 518 L/s
Speed 1310 RPM
Power 0.094kW
Sound level 56dBA
Operating temperature range -20°C to +60°C
Compatible with speed controllers
Compatible with aluminium external grille
Suitable for commercial ventilation and equipment cooling applications

Click here for Data Sheet

SKU	ALV5222
Brand	Allvent
