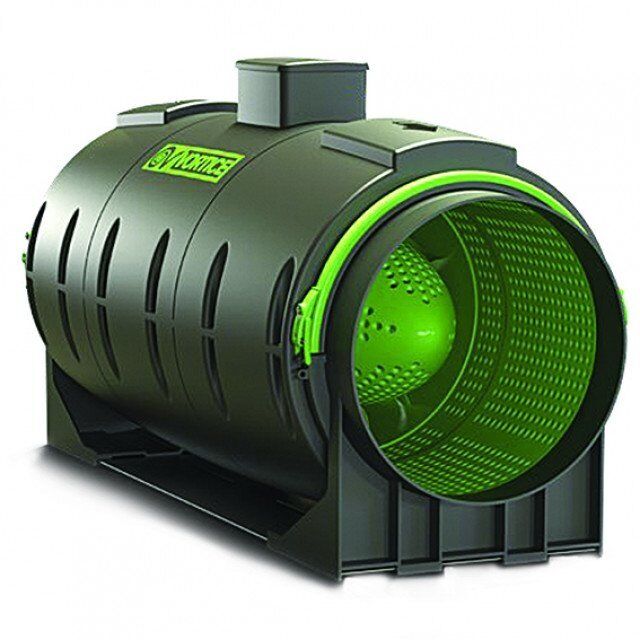

Allvent Vortice Lineo Quiet ES 125MM EC Inline Fan

The Vortice Lineo 125 Quiet ES ALV17171 is a compact 125mm EC inline ventilation fan designed for applications requiring low noise, efficient airflow and adjustable speed control. It uses a Vortice EC brushless motor with thermal overload protection, a ball-bearing shaft and mixed-flow axial-centrifugal impeller to deliver efficient ventilation performance. Its removable design also helps simplify maintenance, while the ball-bearing motor is designed for at least 30,000 hours of operation without mechanical malfunction.

  • Series Lineo Quiet ES
  • 125mm inline fan
  • EC brushless motor
  • 240V
  • Multi-speed 4V, 6V, 8V and 10V control
  • Motor power 6.6W at 4V
  • Motor power 8.8W at 6V
  • Motor power 16W at 8V
  • Motor power 24W at 10V
  • Current 0.10A at 4V
  • Current 0.12A at 6V
  • Current 0.18A at 8V
  • Current 0.26A at 10V
  • Speed 1080 RPM at 4V
  • Speed 1340 RPM at 6V
  • Speed 1865 RPM at 8V
  • Speed 2210 RPM at 10V
  • Airflow 180 m³/h at 4V
  • Airflow 225 m³/h at 6V
  • Airflow 320 m³/h at 8V
  • Airflow 380 m³/h at 10V
  • Maximum airflow 105.6 L/s
  • Maximum pressure 232.4Pa
  • Sound level from 11.3dBA to 28.7dBA at 3m
  • Maximum operating temperature 60°C
  • Weight 3.6kg
  • Thermal overload cutout
  • Mixed-flow axial-centrifugal impeller
  • Designed to fit into small spaces
  • Removable design for easier maintenance
  • Optimised airflow and efficiency
  • Designed for minimal noise emissions
  • Ball-bearing motor
  • Motor designed for at least 30,000 hours of operation without mechanical malfunction
  • Suitable for ducted ventilation systems
  • Suitable for residential ventilation applications
  • Suitable for commercial ventilation applications

Click here for Data Sheet

SKU ALV17171
