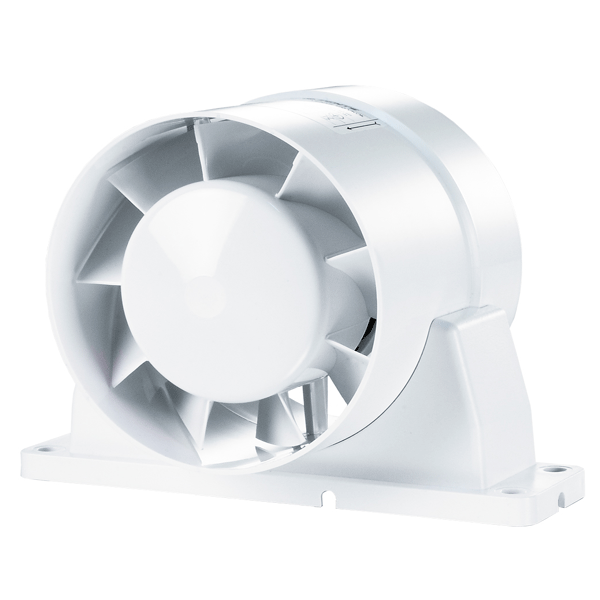

Fanco VKO 100 Compact Axial Inline Fan 100mm

The Fanco EXVUVKO1 VKO 100 is a compact axial inline fan designed for simple and effective inline ventilation in residential and light commercial applications. Part of the VKO Series, this model offers a practical low noise solution for ducted airflow where a compact footprint is important. With a European motor and IPX4 protection, it is well suited to indoor ventilation systems requiring dependable everyday performance. The EXVUVKO1 operates on 220 to 240V and delivers 135m³/hr airflow, 37.53l/s and 79.51CFM. It draws 0.1A, uses 16W of power and produces a noise level of 38dB(A). The specification sheet notes a 100mm duct size, a maximum transferred air temperature of 40°C, and suitability for indoor applications with ambient temperatures from +1°C to +40°C and relative humidity up to 80%. It also states that the single speed motor cannot be used with a speed control.

• 100mm compact axial inline fan
• Compact inline ventilation solution
• Suitable for residential and light commercial use
• European motor
• 220 to 240V operation
• 0.1A current draw
• 16W power consumption
• Airflow 135m³/hr
• Airflow 37.53l/s
• Airflow 79.51CFM
• Noise level 38dB(A)
• 100mm duct size
• IPX4 rated
• Single speed motor
• Cannot be used with speed control
• Suitable for indoor applications
• Maximum transferred air temperature 40°C
• Ambient temperature range +1°C to +40°C
• Relative humidity up to 80%
• Dimensions D 100mm
• Dimensions D1 104mm
• Dimensions L 91mm
• Dimensions L1 31mm
• Dimensions H 114mm
• Dimensions B 160mm
• Dimensions B1 144mm
• Dimensions L2 45mm
• Dimensions L3 29mm
• 2 year replacement warranty
