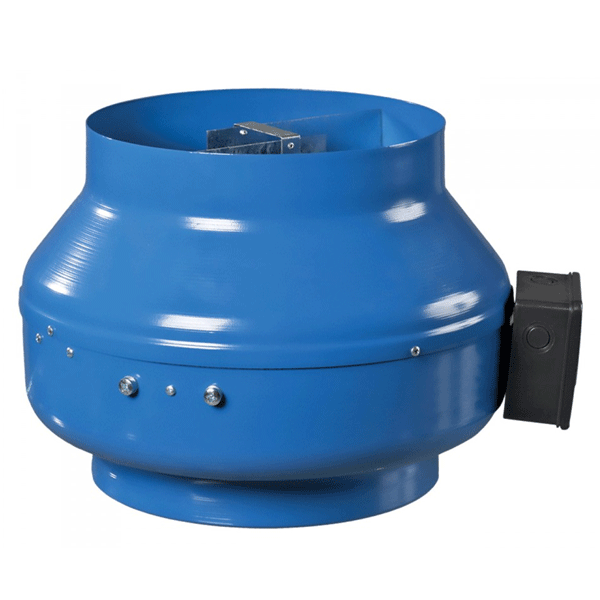

Fanco VKM 315 Metal Centrifugal Inline Fan 315mm

The Fanco EXVUV315 VKM 315 is an all metal centrifugal inline fan designed to deliver exceptional performance when ducted over long distances. Part of the VKM Series, this inline fan is ideal for residential and commercial ventilation applications where stronger pressure performance is needed than a standard axial fan can provide. With its European made construction and Blauberg Motoren motor, it offers a durable and dependable solution for demanding ducted exhaust setups. The EXVUV315 operates on 220 to 240V and delivers 1880m³/hr airflow, 522.64l/s and 1107.32CFM. It draws 1.34A, uses 296W of power and produces a noise level of 54dB(A). The specification sheet also notes IPX4 protection, suitability for indoor use, and operating conditions of +1°C to +40°C with relative humidity up to 80%. It includes mounting brackets for secure installation, can be used with the ESEEAS speed controller.

  • 315mm metal centrifugal inline fan
  • All metal construction
  • Designed for long duct runs
  • Suitable for residential and commercial ventilation
  • Blauberg Motoren motor
  • European made
  • 220 to 240V operation
  • 1.34A current draw
  • 296W power consumption
  • Airflow 1880m³/hr
  • Airflow 522.64l/s
  • Airflow 1107.32CFM
  • Noise level 54dB(A)
  • 315mm duct size
  • Recommended for use with 350mm diameter flexible ducting
  • IPX4 rated
  • Compatible with ESEEAS speed controller
  • Dimmer style speed switch compatible
  • Includes mounting brackets
  • Suitable for indoor applications
  • Maximum transferred air temperature 45°C
  • Ambient temperature range +1°C to +40°C
  • Relative humidity up to 80%
  • Dimensions D 314mm
  • Dimensions D1 404mm
  • Dimensions B 454mm
  • Dimensions B1 414mm
  • Dimensions L 260mm
  • Dimensions L1 25mm
  • Dimensions L2 40mm
  • Dimensions L3 40mm
  • 2 year replacement warranty

Click here for Data Sheet

SKU EXVUV315
Brand Fanco
