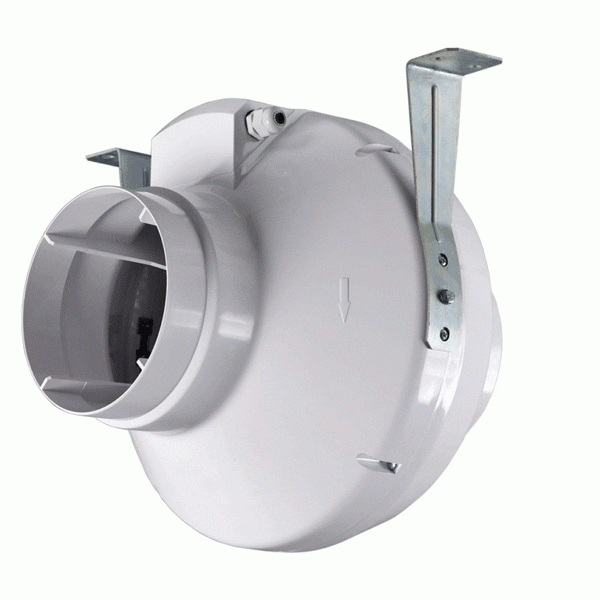

Fanco VK Centrifugal 150 High Pressure Inline Exhaust Fan 150mm

The Fanco EXVUVP150 VK Centrifugal 150 is a high pressure inline exhaust fan designed to deliver powerful airflow for demanding residential and commercial ventilation applications. Part of the VK Centrifugal Series, this model is built for installations where stronger pressure performance is needed, making it well suited to longer duct runs and more challenging exhaust setups. It features a Blauberg Motoren motor and German made construction for dependable everyday operation. The EXVUVP150 operates on 230V and delivers 460m³/hr airflow, 127.88l/s and 270.94CFM. It draws 0.35A, uses 80W of power and produces a noise level of 46dB(A). The specification sheet also notes IPX4 protection, suitability for indoor use, and operating conditions of +1°C to +40°C with relative humidity up to 80%. Its external casing is made from corrosion resistant durable plastic, and the motor includes thermal overheating protection. It can also be used with the ESEEAS speed controller.

  • 150mm high pressure centrifugal inline fan
  • Powerful centrifugal exhaust fan
  • Suitable for residential and commercial ventilation
  • Blauberg Motoren motor
  • German made
  • 230V operation
  • 0.35A current draw
  • 80W power consumption
  • Airflow 460m³/hr
  • Airflow 127.88l/s
  • Airflow 270.94CFM
  • Noise level 46dB(A)
  • 150mm duct size
  • IPX4 rated
  • Corrosion resistant durable plastic casing
  • Thermal overheating protection
  • Compatible with ESEEAS speed controller
  • Dimmer style speed switch compatible
  • Suitable for indoor applications
  • Maximum transferred air temperature 60°C
  • Ambient temperature range +1°C to +40°C
  • Relative humidity up to 80%
  • Dimensions D 150mm
  • Dimensions D1 300mm
  • Dimensions B 310mm
  • Dimensions L 286mm
  • Dimensions L1 30mm
  • Dimensions L2 30mm
  • Dimensions L3 30mm
  • 2 year replacement warranty

Click here for Data Sheet

SKU EXVUVP150
Brand Fanco
