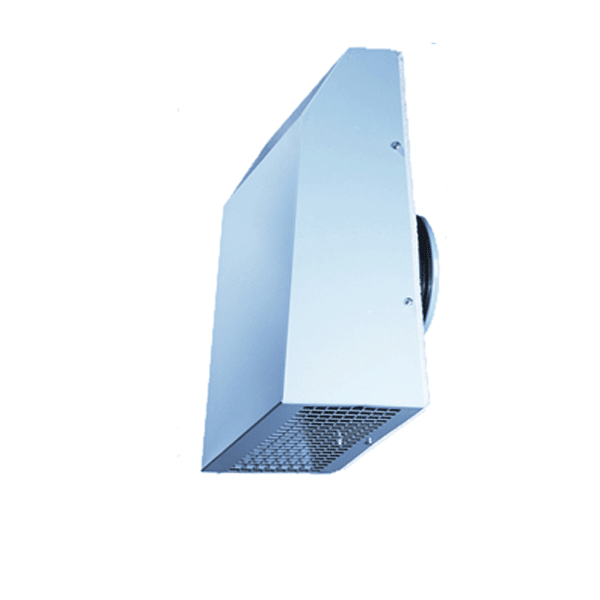

Fanco VCN 125 External Wall Mounted Centrifugal Fan 125mm

The Fanco EWVUVCN2 VCN 125 is an externally mounted centrifugal fan designed to deliver a high extraction rate along with strong ducted performance. Part of the VCN Series, this unit is ideal for residential and commercial ventilation applications where reliable airflow and external mounting are required. With European made construction and a Blauberg Motoren motor, it offers dependable performance for demanding exhaust installations. Designed for mounting on an external wall, the EWVUVCN2 expels air through the grate at the bottom of the unit and includes a rodent proof guard for added protection. It operates on 230V and delivers 485m³/hr airflow, 108.42l/s and 229.71CFM. The unit draws 0.33A, uses 75W of power and produces a noise level of 54dB(A). The specification sheet also notes IPX4 protection, thermal overheating protection, compatibility with the ESEEAS speed controller, and suitability for ambient temperatures from +1°C to +40°C with relative humidity up to 70%.

  • 125mm externally mounted centrifugal fan
  • Designed for external wall mounting
  • High extraction rate
  • Strong ducted performance
  • Suitable for residential and commercial ventilation
  • Blauberg Motoren motor
  • European made
  • 230V operation
  • 0.33A current draw
  • 75W power consumption
  • Airflow 485m³/hr
  • Airflow 108.42l/s
  • Airflow 229.71CFM
  • Noise level 54dB(A)
  • 125mm duct size
  • IPX4 rated
  • Compatible with ESEEAS speed controller
  • Dimmer style speed switch compatible
  • Thermal overheating protection
  • Rodent proof guard on underside
  • Air expelled through bottom grate
  • Maximum transferred air temperature 55°C
  • Suitable for indoor application air transfer
  • Ambient temperature range +1°C to +40°C
  • Relative humidity up to 70%
  • Dimensions D 124mm
  • Dimensions H 355mm
  • Dimensions B 260mm
  • Dimensions L 138mm
  • 2 year replacement warranty

Click here for Data Sheet

SKU EWVUVCN2
Brand Fanco
