Allvent 200MM Ring Plate Fan

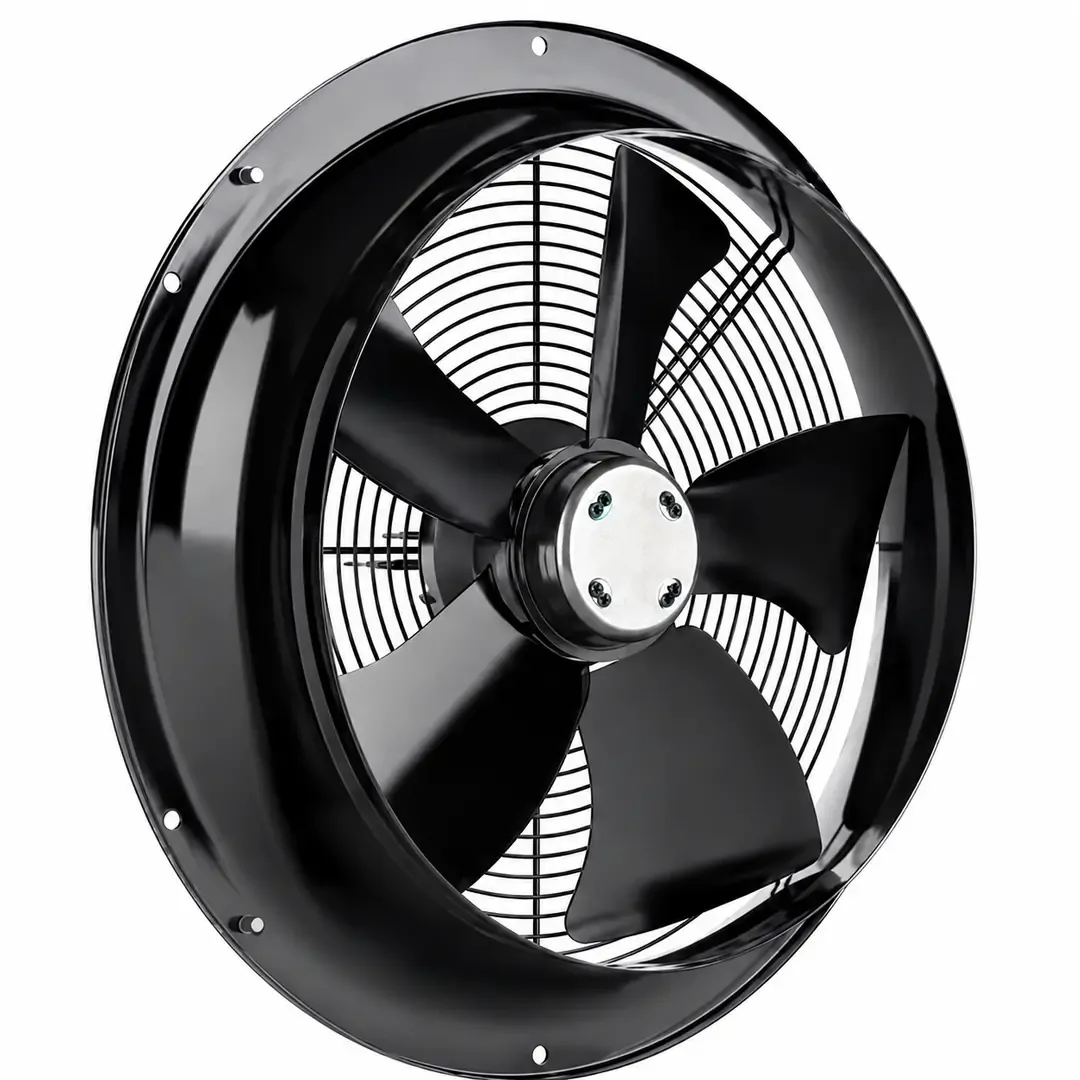

The Allvent ALVRP200-4E ALV5220 is a high-performance 200mm ring plate fan designed for commercial ventilation and air movement applications where compact size and reliable airflow are required. It features IP44 protection, speed controllability and is suitable for applications such as ATM and server rooms. Delivering up to 510 m³/h of airflow, the fan provides a practical solution for continuous ventilation, equipment cooling and general commercial exhaust or supply air systems. Compatible accessories include speed controllers and an aluminium external grille.

  • Ring plate fan
  • 200mm size
  • High performance design
  • IP44 rated
  • Speed controllable
  • Suitable for ATM rooms
  • Suitable for server rooms
  • Single phase
  • 240V
  • 4 pole motor
  • Current 0.14A
  • Airflow 510 m³/h
  • Airflow 142 L/s
  • Speed 1385 RPM
  • Power 0.032kW
  • Sound level 44dBA
  • Operating temperature range -20°C to +70°C
  • Compatible with speed controllers
  • Compatible with aluminium external grille
  • Suitable for commercial ventilation applications

Click here for Data Sheet

SKU ALV5220
Brand Allvent
