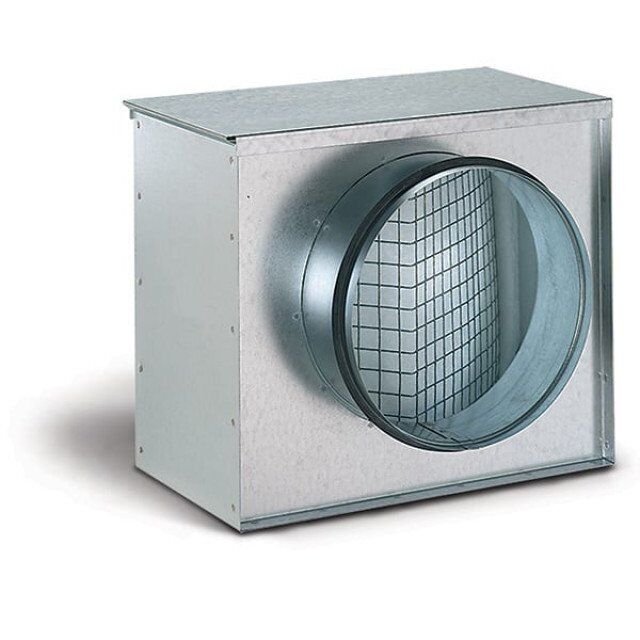

Allvent FB100 100MM Ventilation Filter Box

The Allvent FB100 ALV376 is a compact ventilation filter box designed to help protect ducted air systems by filtering the air stream before it continues through the ventilation network. Its simple galvanised box-style construction and 100mm round duct connection make it well suited to residential and light commercial installations, including whole-home ventilation, supply air systems, offices, apartments and utility spaces. Designed to be installed after the fan and, where applicable, after a noise attenuator or duct heater, it provides a practical in-line filtration point that can be integrated neatly into a ducted ventilation setup.

• Ventilation filter box
• 100mm duct connection
• In-line duct installation
• Designed for use in ventilation systems
• Install after the fan
• Install after the noise attenuator where used
• Install after the duct heater where used
• Galvanised box-style housing
• Suitable for residential ventilation systems
• Suitable for light commercial ventilation systems
• Suitable for supply air and ducted ventilation applications
• Dimension A 210mm
• Dimension B 170mm
• Dimension C 125mm
• Dimension D 100mm
• Dimension E 227mm

Click here for Data Sheet
