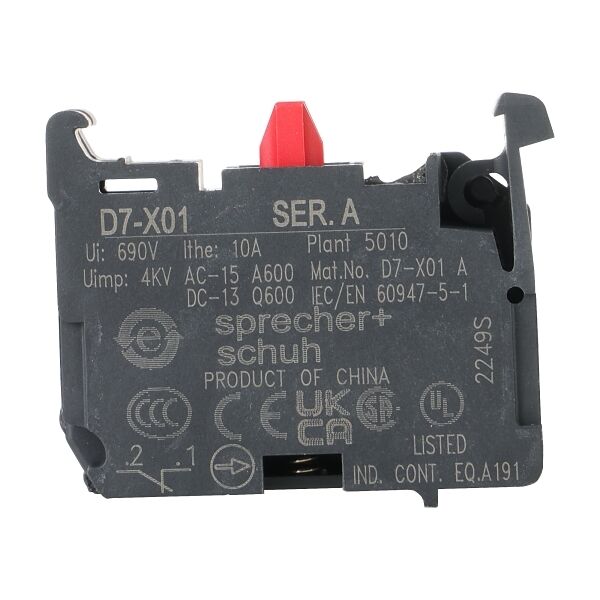

Sprecher + Schuh Contact Block 1NC for 22.5mm Pushbutton Operators

The Sprecher + Schuh D7X01 is an auxiliary contact block featuring 1 Normally Closed (NC) contact, designed for use with 22.5mm D7 series pushbutton operators. It provides reliable switching performance for industrial control and automation applications. Part of the modular D7 operator control range, the D7X01 allows easy configuration and assembly within control panels and machinery installations.

  • Number of contacts (NC): 1
  • Rated insulation voltage (Ui): 690V
  • 6A at 120V
  • 3A at 240V
  • 1.8A at 400V
  • 0.55A at 125V
  • 0.27A at 250V\
  • 5mA minimum current
  • 17V minimum voltage
  • Component type: Auxiliary contact block
  • Range: D7
  • Designed for 22.5mm pushbutton operators
  • Modular clip-on installation

Click here for Data Sheet

SKU D7X01
Brand NHP
