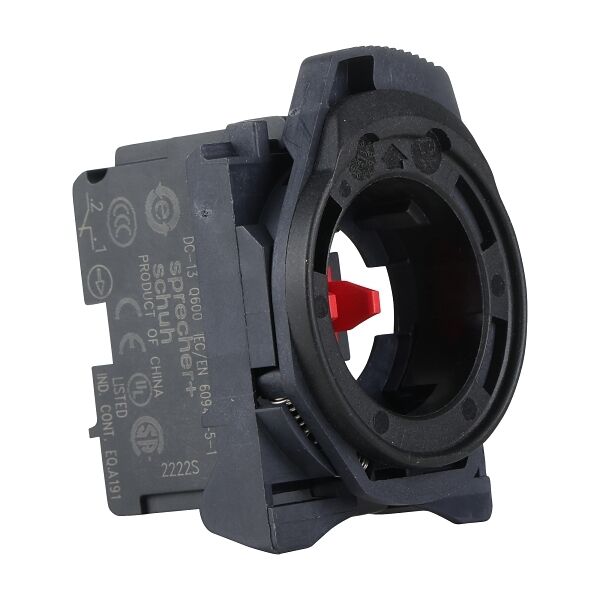

Sprecher + Schuh Contact Block 1NC with Plastic Plate for 22.5mm Operators

The Sprecher + Schuh D7PX01 is a screw-type auxiliary contact block featuring 1 Normally Closed (NC) contact, supplied with a plastic mounting plate for 22.5mm pushbutton operators. Designed for use within the D7 operator control range, it provides reliable switching performance for industrial control and automation applications. Part of the modular D7 system, the D7PX01 allows easy assembly and configuration within control panels and machinery.

  • Number of contacts: 1 Normally Closed (NC)
  • Rated insulation voltage (Ui): 690V
  • 6A at 120V
  • 3A at 240V
  • 1.8A at 400V
  • 0.55A at 125V
  • 0.27A at 250V
  • 5mA minimum current
  • 17V minimum voltage
  • Component type: Auxiliary contact block
  • Range: D7
  • Connection type: Screw terminals
  • Includes plastic adapter plate for 22.5mm pushbutton mounting

Click here for Data Sheet

SKU D7PX01
Brand NHP
