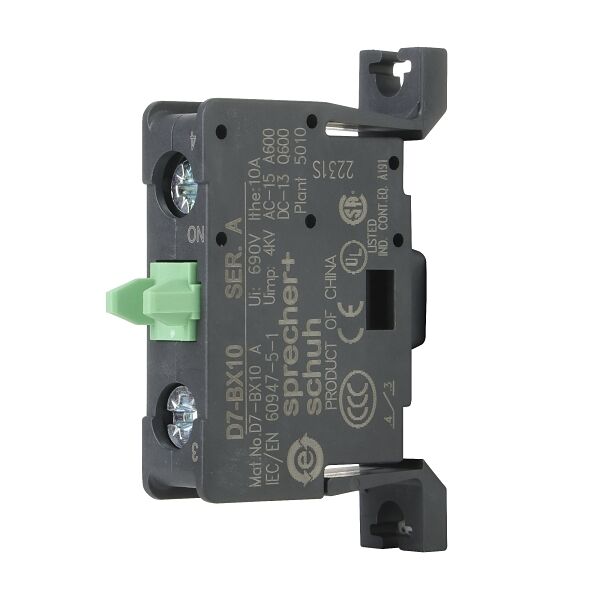

Sprecher + Schuh Contact Block Base Mount 1NO for 22.5mm Operators

The Sprecher + Schuh D7BX10 is a base-mounted auxiliary contact block designed for use with 22.5mm D7 series pushbutton operators. Featuring 1 Normally Open (NO) contact, it provides reliable switching performance for industrial control and automation applications. Part of the D7 operator control range, this modular contact block allows easy configuration and assembly within control panels and machinery.

  • Number of contacts: 1 Normally Open (NO)
  • Rated insulation voltage (Ui): 690V
  • 6A at 120V
  • 3A at 240V
  • 1.8A at 400V
  • 0.55A at 125V
  • 0.27A at 250V
  • 5mA minimum current
  • 17V minimum voltage
  • Mounting method: Base mounting
  • Component type: Auxiliary contact block
  • Range: D7

Click here for Data Sheet



SKU D7BX10
Brand NHP
