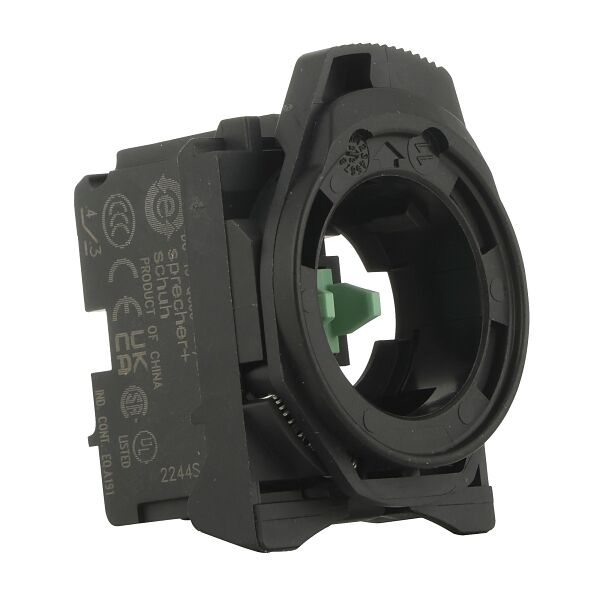

Sprecher + Schuh Contact Block 1NO with Plastic Plate for 22.5mm Operators

The Sprecher + Schuh D7PX10 is a screw-type auxiliary contact block featuring 1 Normally Open (NO) contact, supplied with a plastic mounting plate for 22.5mm pushbutton operators. Designed for use within the D7 operator control range, it provides dependable switching performance for industrial control and automation applications. As part of the modular D7 system, the D7PX10 allows simple assembly and flexible configuration in control panels and machinery.

  • Number of contacts: 1 Normally Open (NO)
  • Rated insulation voltage (Ui): 690V
  • 6A at 120V
  • 3A at 240V
  • 1.8A at 400V
  • 0.55A at 125V
  • 0.27A at 250V
  • 5mA minimum current
  • 17V minimum voltage
  • Component type: Auxiliary contact block
  • Range: D7
  • Connection type: Screw terminals
  • Includes plastic adapter plate for 22.5mm pushbutton mounting

Click here for Data Sheet



SKU D7PX10
