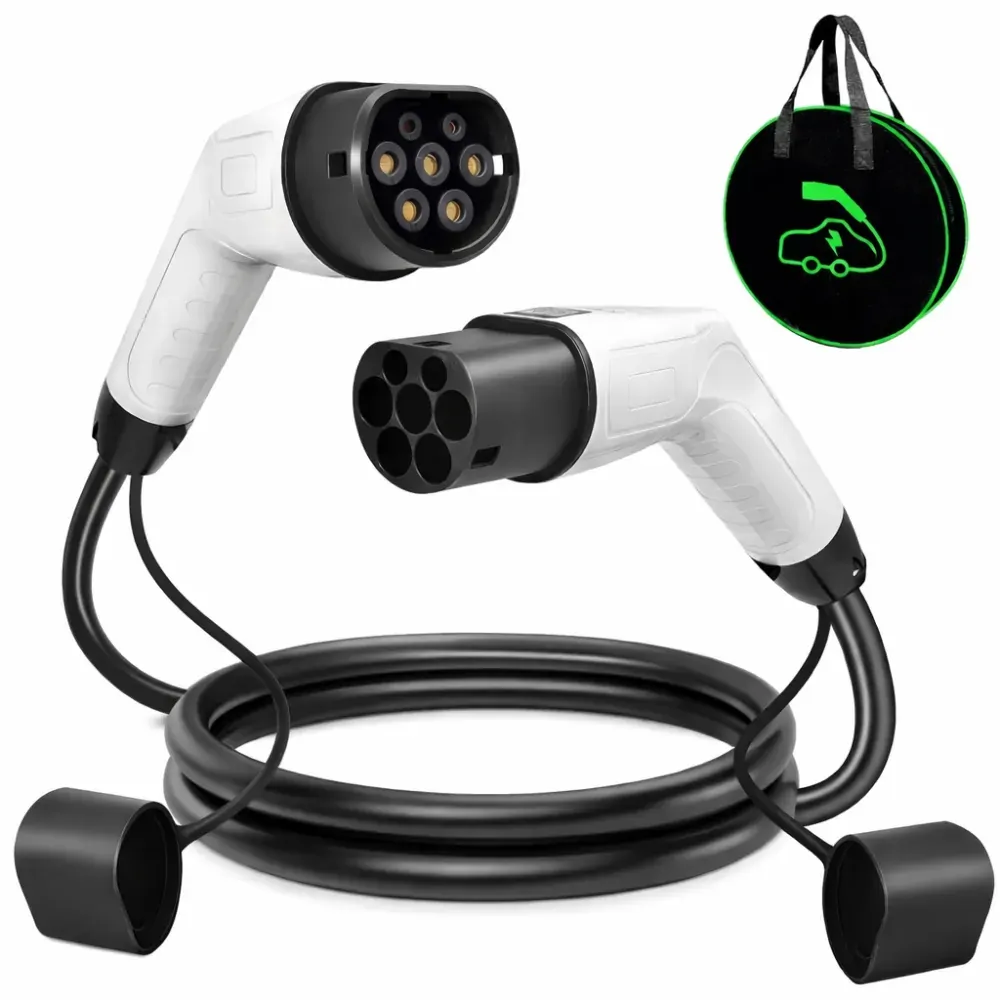

SEVR 22kW 5m Type 2 EV Charging Cable

The SEVR SV-SCACC-22-5W is a 5 metre Type 2 EV charging cable designed for three-phase charging up to 22kW. Rated at 32A and 380-480V AC, it features Type 2 male and female connectors and is compatible with most modern electric vehicles using the Type 2 standard. Its 5 metre length provides practical reach for everyday charging, while silver-plated copper alloy pins, ABS+PC plug construction and an IP55 rating support reliable residential and commercial EV charging use.

  • EV charging cable
  • 22kW maximum output power
  • Three-phase operation
  • 32A input/output current
  • 380-480V AC
  • 5 metre cable length
  • Type 2 charging cable
  • 1 x Type 2 male connector
  • 1 x Type 2 female connector
  • Copper alloy pins with silver plating
  • ABS+PC plug construction
  • Insulation resistance >1000MΩ
  • Withstand voltage 2000V
  • Contact resistance 0.5MΩ max
  • IP55 rated
  • Operating temperature -30°C to +50°C
  • Suitable for compatible Type 2 electric vehicles
  • Suitable for residential EV charging
  • Suitable for workplace and commercial EV charging applications

Click here for Data Sheet

SKU SV-SCACC-22-5W
