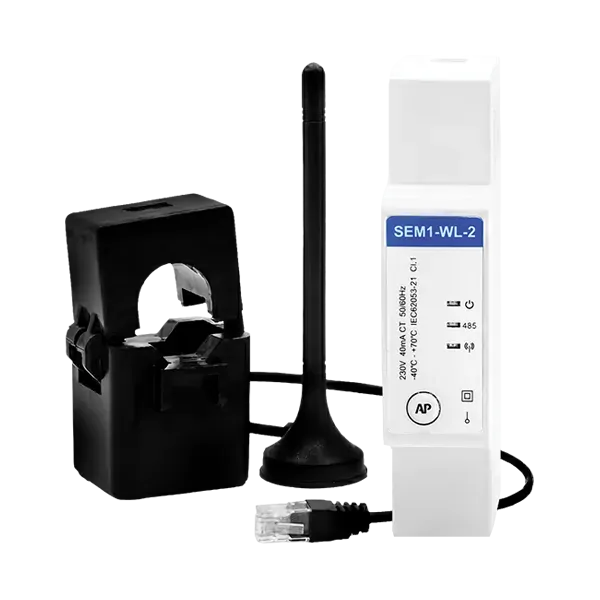

SEVR OPTI Single Phase CT Module & Clamp for 7kW EV Charger

The SEVR OPTI SV-EVACC-CT7-SEM1 is a single-phase CT module and clamp kit designed specifically for the 7kW SEVR OPTI EV Charger. Installed at the property’s main electrical supply, it continuously measures real-time current consumption and communicates this information to the charger so Dynamic Load Balancing can automatically adjust EV charging power around other electrical loads. The system can also monitor power flow for solar integration, helping the charger make better use of available surplus solar generation while reducing the risk of overloading the property’s electrical supply.

  • Series OPTI
  • Single-phase CT module and clamp kit
  • Designed for the SEVR OPTI 7kW single-phase EV charger
  • Dynamic Load Balancing compatible
  • Continuously monitors real-time site current consumption
  • Allows charger output to adjust to available electrical capacity
  • Helps reduce the risk of electrical supply overload
  • Supports solar integration
  • Monitors power flow at the grid connection point
  • Can help maximise surplus solar energy used for EV charging
  • Wi-Fi communication supported
  • RS485 communication supported
  • Wi-Fi recommended for single-charger installations
  • RS485 suitable where Wi-Fi coverage is poor
  • 35mm DIN rail mounted CT module
  • Includes 1 CT clamp for single-phase installation
  • Includes Eastron CT Module
  • Includes power connector
  • Includes antenna
  • Suitable for residential and compatible commercial EV charging installations
  • Installation must be performed by a licensed and qualified electrician

Click here for Data Sheet

SKU SV-EVACC-CT7-SEM1
