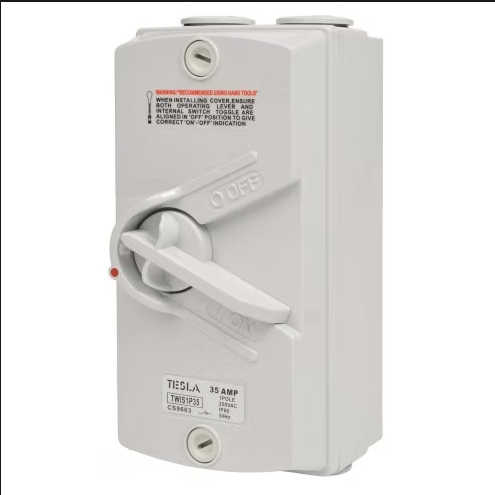

General Trade Supplies Isolator Large

  • Weather protected Isolating Switches are suitable for any external application
  • Range for single and triple pole switches are 20 Amps, 32 Amps and 63 Amps
  • Easily terminated and more wiring room with the base mount mechanism
  • Fixed Earth and Neutral connector bars with dual clamping screws per tunnel
  • Insulated caps that cover base mounting screws to protect from any live cables
  • Dual 25mm screwed conduit entries top and bottom which allows four ways to surface wire the switch.
  • Each unit is supplied with screwed conduit plugs and screwed reducers for easy connection to 25mm or 20mm conduits and screw caps.
  • Screw caps must be installed to ensure IP Rating.
  • For security, a hole is provided for padlocking the lever in the OFF position
  • Has impact resistant base and cover which will survive the hardest knocks in almost any installation.
  • Utilisation category: AC22A, AC23A

Click here for Data Sheet

SKU TESTWIS1P_L
Brand General trade supplies
