SEVR OPTI Three Phase CT Module & Clamp Kit for 22kW EV Charger

The SEVR OPTI SV-EVACC-CT22-SEM3 is a three-phase CT module and clamp kit designed specifically for the 22kW SEVR OPTI EV Charger. Installed at the property’s main electrical supply, it continuously measures real-time current consumption across the three-phase supply and communicates this data to the charger via Wi-Fi or RS485. This allows the Dynamic Load Balancing system to automatically adjust EV charging power around other site loads, helping reduce the risk of overload while improving energy use. It can also support solar integration by monitoring grid power flow and allowing the charger to respond to available surplus solar generation.

  • Series OPTI
  • Three-phase CT module and clamp kit
  • Designed for the SEVR OPTI 22kW three-phase EV charger
  • Dynamic Load Balancing compatible
  • Continuously monitors real-time site current consumption
  • Monitors three-phase electrical supply
  • Allows charger output to adjust to available electrical capacity
  • Helps reduce the risk of electrical supply overload
  • Supports solar integration
  • Monitors power flow at the grid connection point
  • Can help maximise surplus solar energy used for EV charging
  • Wi-Fi communication supported
  • RS485 communication supported
  • Wi-Fi suitable for single-charger installations
  • RS485 recommended for multi-charger load balancing
  • Supports multi-charger DLB networks via RS485

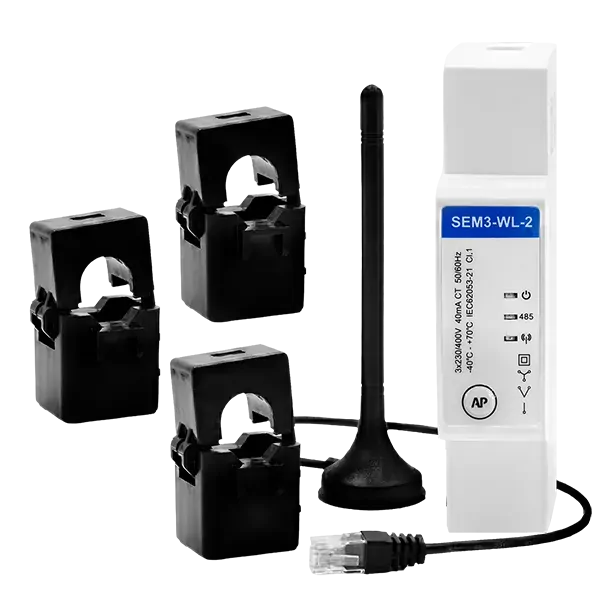

  • 35mm DIN rail mounted CT module
  • Includes 3 CT clamps for three-phase installation
  • Includes Eastron CT Module
  • Includes power connector
  • Includes antenna
  • Suitable for residential and commercial EV charging installations
  • Installation must be performed by a licensed and qualified electrician

Click here for Data Sheet

SKU SV-EVACC-CT22-SEM3
Brand Sevr
