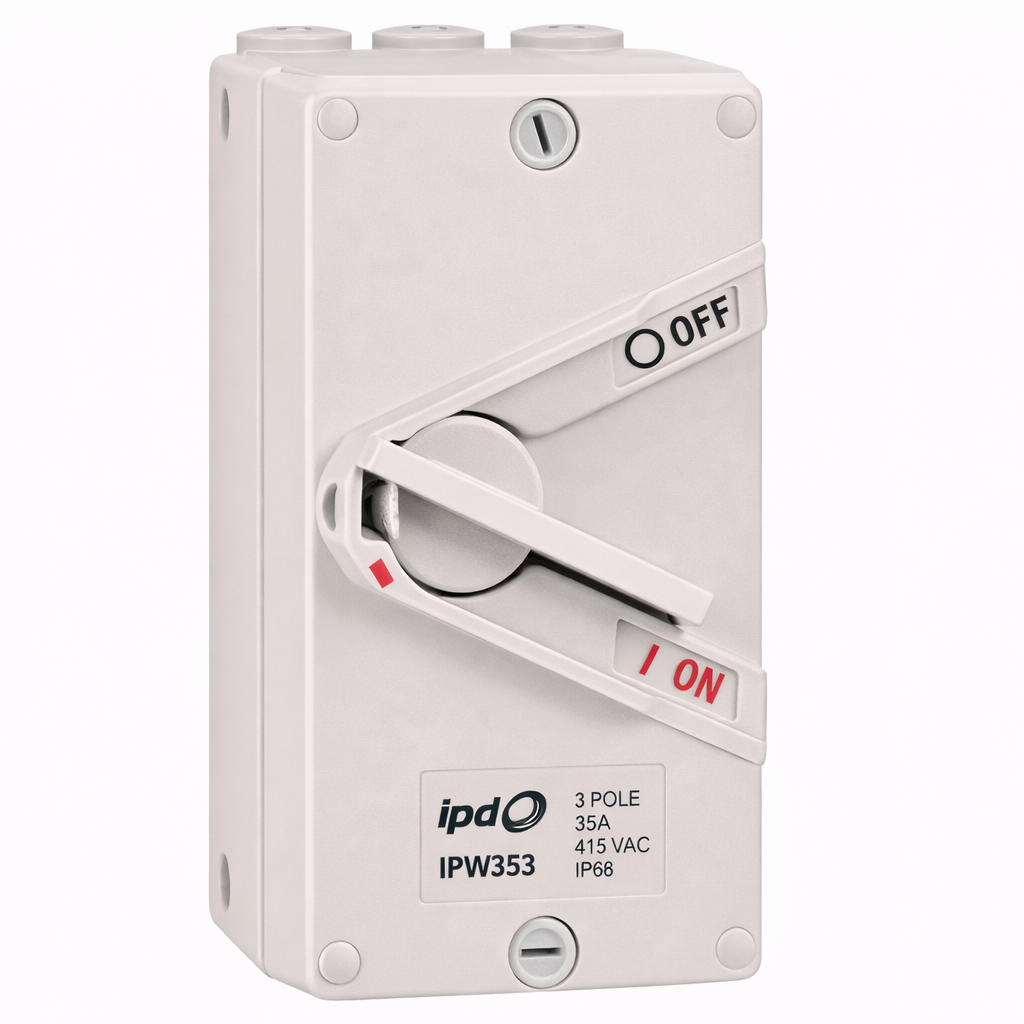

IPD Padlockable Weatherproof Isolator 3 Pole 35A 415V IP66

The IPD IPW353 Padlockable Weatherproof Isolator is a compact and reliable isolation switch designed for safe switching in demanding commercial and industrial environments. With a 3 pole configuration, 35A current rating and 415V operation, this weatherproof isolator is ideal for applications that require dependable local isolation and strong protection against dust and water ingress. Its IP66 rating makes it well suited to harsh Australian conditions. Built for durability and installation flexibility, the IPW353 features four M25 gland entries and supports cable cross sections up to 25 sq-mm. It also offers a rated insulation voltage of 500 VAC, dielectric strength of 1 kV, a rated short time withstand current of 0.76 kA and a short circuit capacity of 1.5 kA. Compact in size, it measures 82.5mm wide, 167mm high and 89mm deep, making it a neat and efficient solution for a wide range of switching applications.

  • Padlockable isolator
  • 3 pole design
  • 35A rated current
  • 415V rated voltage
  • IP66 protection rating
  • Suitable for harsh indoor and outdoor environments
  • Rated insulation voltage 500 VAC
  • Dielectric strength 1 kV
  • Short circuit capacity 1.5 kA
  • Rated short time withstand current 0.76 kA
  • Four M25 gland entries
  • Suitable for cable cross section up to 25 sq-mm
  • Compact enclosure design

Click here for Data Sheet

SKU IPW353
Brand IPD
