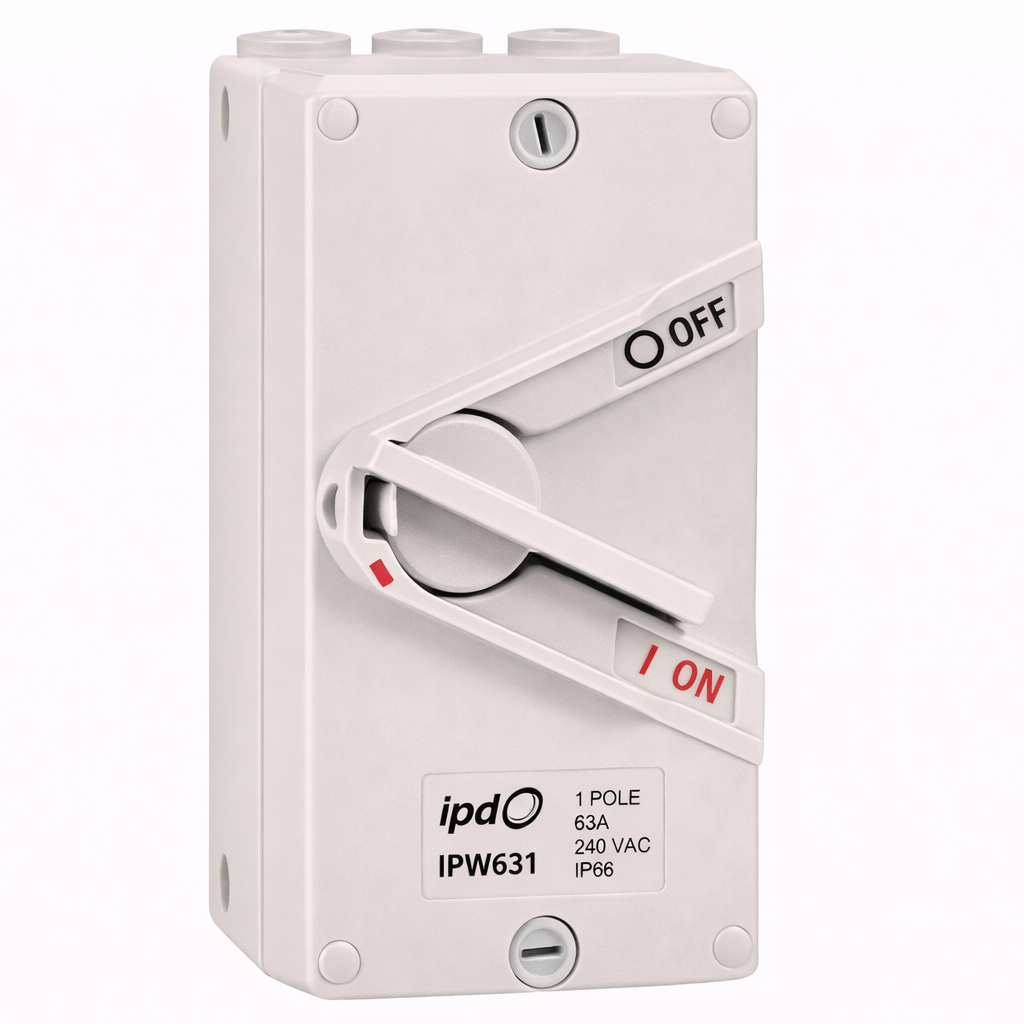

IPD Padlockable Weatherproof Isolator 1 Pole 63A 240V IP66

The IPD IPW631 Padlockable Weatherproof Isolator is a compact and reliable isolation switch designed for safe switching in demanding indoor and outdoor environments. With a single pole configuration, 63A current rating and 240V operation, this weatherproof isolator is ideal for commercial and industrial applications where dependable local isolation and strong protection against dust and water are essential. Its IP66 rating makes it well suited to harsh Australian conditions. Built for durability and installation flexibility, the IPW631 features four M25 gland entries and supports cable cross sections up to 25 sq-mm. It also offers a rated insulation voltage of 500 VAC, dielectric strength of 1 kV, a rated short time withstand current of 0.76 kA and a short circuit capacity of 1.5 kA. Compact in size, it measures 82.5mm wide, 167mm high and 89mm deep, making it a neat and efficient solution for a wide range of switching applications.

  • Padlockable isolator
  • Single pole design
  • 63A rated current
  • 240V rated voltage
  • IP66 protection rating
  • Suitable for harsh indoor and outdoor environments
  • Rated insulation voltage 500 VAC
  • Dielectric strength 1 kV
  • Short circuit capacity 1.5 kA
  • Rated short time withstand current 0.76 kA
  • Four M25 gland entries
  • Suitable for cable cross section up to 25 sq-mm
  • Compact enclosure design

Click here for Data Sheet

SKU IPW631
Brand IPD
