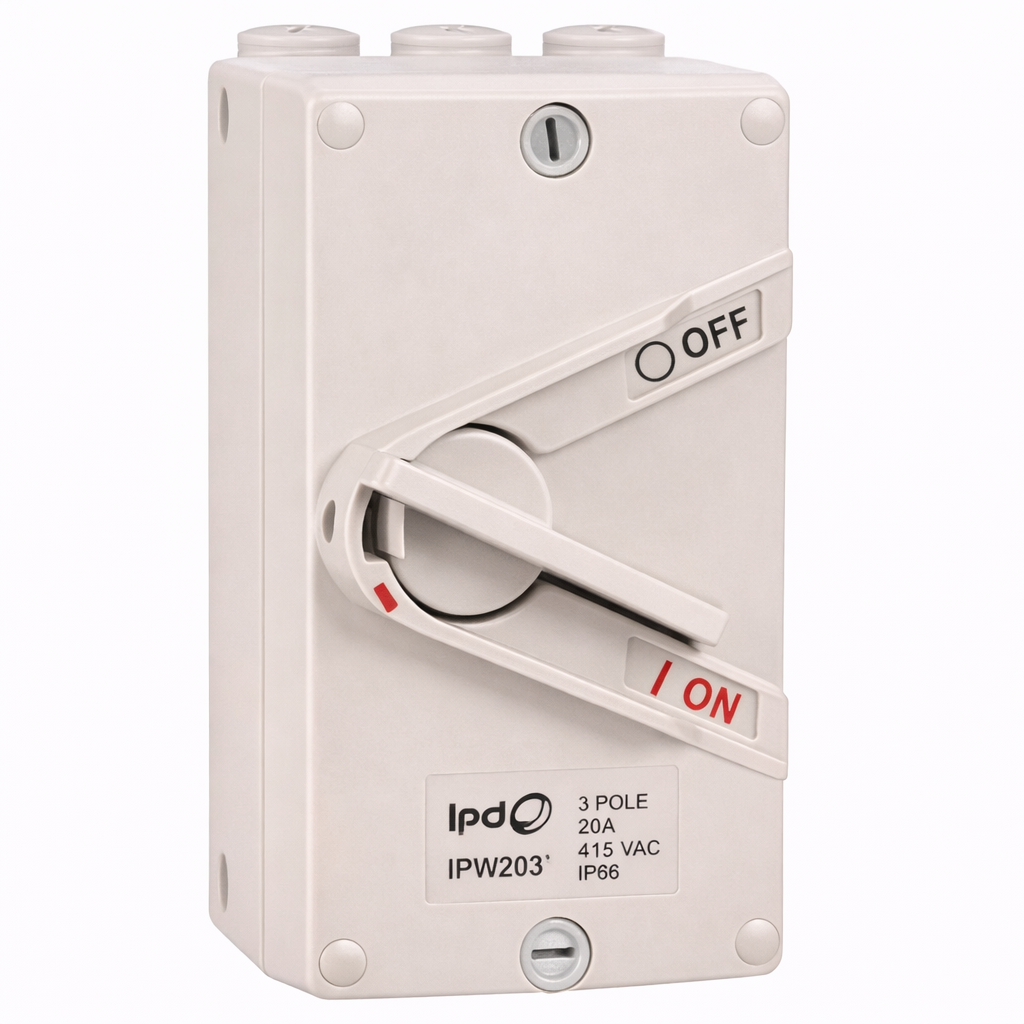

IPD Padlockable Weatherproof Isolator 3 Pole 20A 415V IP66

The IPD IPW203 Padlockable Weatherproof Isolator is a durable and reliable isolation switch designed for safe switching in demanding commercial and industrial environments. With a 3 pole configuration, 20A current rating and 415V operation, this compact weatherproof isolator is ideal for installations that require dependable local isolation and strong protection against dust and water ingress. Its IP66 rating makes it well suited to harsh Australian conditions. Built for practical installation and long term performance, the IPW203 features four M25 gland entries and supports cable cross sections up to 25 sq-mm. It also offers a rated insulation voltage of 500VAC, dielectric strength of 1kV, a rated short time withstand current of 0.76kA and a short circuit capacity of 1.5kA. Compact in size, it measures 82.5mm wide, 167mm high and 89mm deep, making it a neat and efficient solution for a wide range of switching applications.

  • Padlockable isolator
  • 3 pole design
  • 20A rated current
  • 415V rated voltage
  • IP66 protection rating
  • Suitable for harsh indoor and outdoor environments
  • Rated insulation voltage 500VAC
  • Dielectric strength 1kV
  • Short circuit capacity 1.5kA
  • Rated short time withstand current 0.76kA
  • Four M25 gland entries
  • Suitable for cable cross section up to 25 sq-mm
  • Compact enclosure design

Click here for Data Sheet



SKU IPW203
Brand IPD
