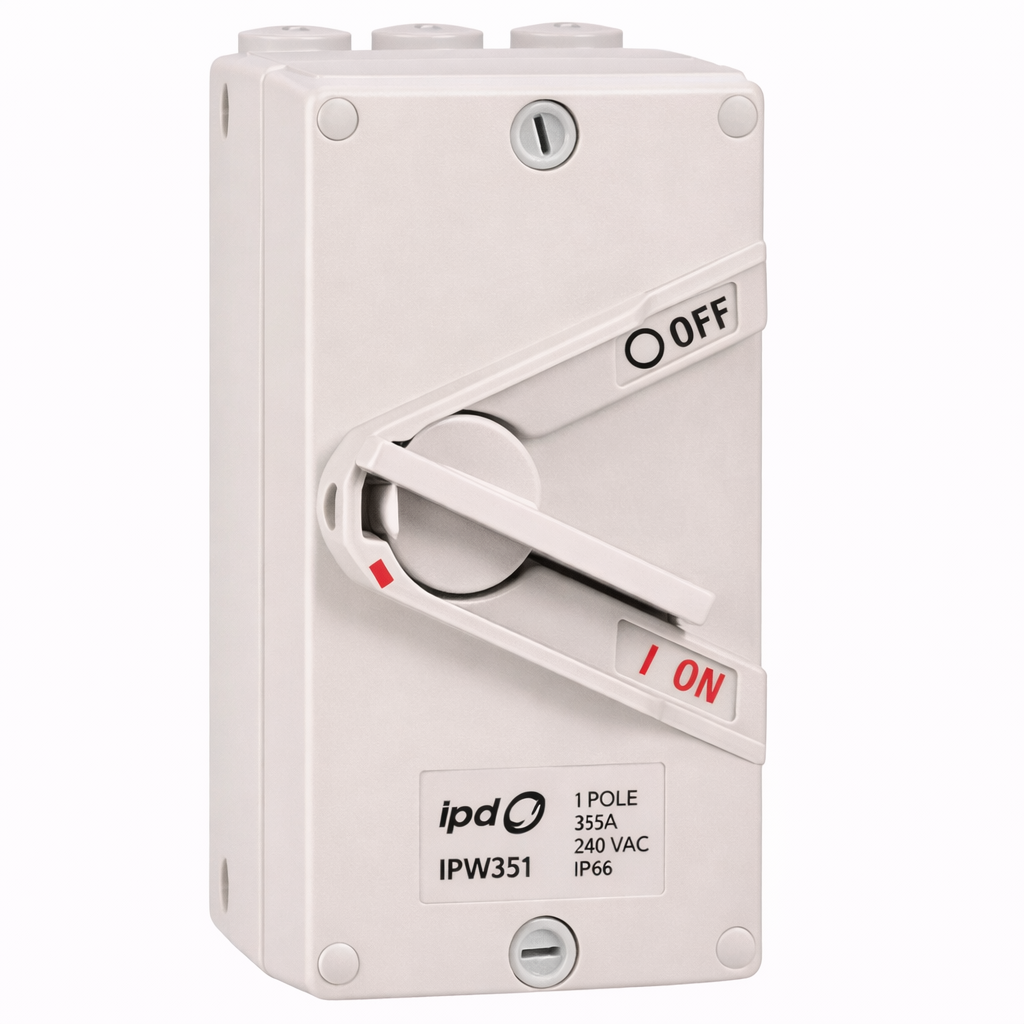

IPD Padlockable Weatherproof Isolator 1 Pole 35A 240V IP66

The IPD IPW351 Padlockable Weatherproof Isolator is a compact and reliable isolation switch designed for safe switching in demanding indoor and outdoor environments. With a single pole configuration, 35A current rating and 240V operation, this weatherproof isolator is ideal for commercial and industrial applications where dependable local isolation and strong protection against dust and water are essential. Its IP66 rating makes it well suited to harsh Australian conditions. Built for durability and installation flexibility, the IPW351 features four M25 gland entries and supports cable cross sections up to 25 sq-mm. It also offers a rated insulation voltage of 500VAC, dielectric strength of 1kV, a rated short time withstand current of 0.76kA and a short circuit capacity of 1.5kA. Compact in size, it measures 82.5mm wide, 167mm high and 89mm deep, making it a neat and efficient solution for a wide range of switching applications

  • Padlockable isolator
  • Single pole design
  • 35A rated current
  • 240V rated voltage
  • IP66 protection rating
  • Suitable for harsh indoor and outdoor environments
  • Rated insulation voltage 500VAC
  • Dielectric strength 1kV
  • Short circuit capacity 1.5kA
  • Rated short time withstand current 0.76kA
  • Four M25 gland entries
  • Suitable for cable cross section up to 25 sq-mm
  • Compact enclosure design

Click here for Data Sheet

SKU IPW351
Brand IPD
