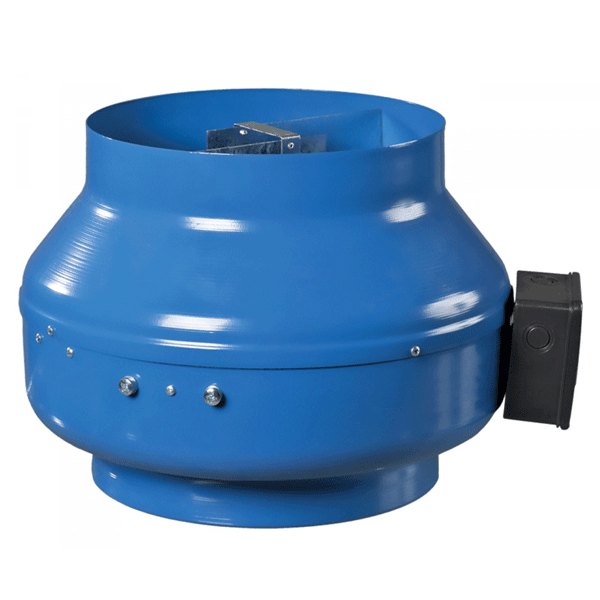

Fanco VKM 200 Metal Centrifugal Inline Fan 200mm

The Fanco EXVUV200 VKM 200 is an all metal centrifugal inline fan designed to deliver exceptional performance when ducted over long distances. Part of the VKM Series, this inline fan is ideal for residential and commercial ventilation applications where stronger pressure performance is needed than a standard axial fan can provide. With its European made construction and Blauberg Motoren motor, it offers a durable and dependable solution for demanding ducted exhaust setups. The EXVUV200 operates on 220 to 240V and delivers 1150m³/hr airflow, 319.44l/s and 647.9CFM. It draws 0.84A, uses 193W of power and produces a noise level of 49dB(A). The specification sheet also notes IPX4 protection, suitability for indoor use, and operating conditions of +1°C to +40°C with relative humidity up to 80%. It includes mounting brackets for secure installation and can be used with the ESEEAS speed controller.

  • 200mm metal centrifugal inline fan
  • All metal construction
  • Designed for long duct runs
  • Suitable for residential and commercial ventilation
  • Blauberg Motoren motor
  • European made
  • 220 to 240V operation
  • 0.84A current draw
  • 193W power consumption
  • Airflow 1150m³/hr
  • Airflow 319.44l/s
  • Airflow 647.9CFM
  • Noise level 49dB(A)
  • 200mm duct size
  • IPX4 rated
  • Compatible with ESEEAS speed controller
  • Dimmer style speed switch compatible
  • Includes mounting brackets
  • Suitable for indoor applications
  • Maximum transferred air temperature 45°C
  • Ambient temperature range +1°C to +40°C
  • Relative humidity up to 80%
  • Dimensions D 198mm
  • Dimensions D1 344mm
  • Dimensions B 395mm
  • Dimensions B1 355mm
  • Dimensions L 255mm
  • Dimensions L1 25mm
  • Dimensions L2 29mm
  • Dimensions L3 40mm
  • 2 year replacement warranty

Click here for Data Sheet

SKU EXVUV200
Brand Fanco
