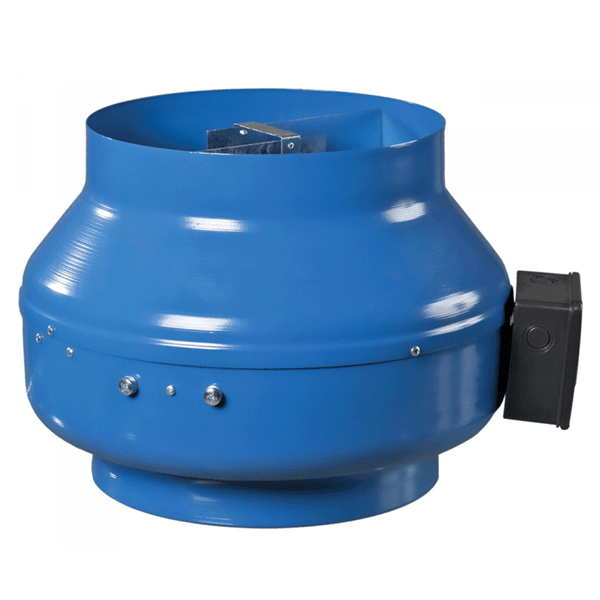

Fanco VKM 100 Metal Centrifugal Inline Fan 100mm

The Fanco EXVUV100 VKM 100 is an all metal centrifugal inline fan designed to deliver exceptional performance when ducted over long distances. Part of the VKM Series, this inline fan is well suited to residential and commercial ventilation applications where stronger pressure performance is needed than a standard axial fan can provide. With its European made construction and Blauberg Motoren motor, it offers a durable and dependable solution for demanding ducted exhaust setups. The EXVUV100 operates on 220 to 240V and delivers 270m³/hr airflow, 75.06l/s and 159.03CFM. It draws 0.32A, uses 73W of power and produces a noise level of 47dB(A). The specification sheet also notes IPX4 protection, suitability for indoor use, and operating conditions of +1°C to +40°C with relative humidity up to 80%. It includes mounting brackets for secure installation and can be used with the ESEEAS speed controller.

  • 100mm metal centrifugal inline fan
  • All metal construction
  • Designed for long duct runs
  • Suitable for residential and commercial ventilation
  • Blauberg Motoren motor
  • European made
  • 220 to 240V operation
  • 0.32A current draw
  • 73W power consumption
  • Airflow 270m³/hr
  • Airflow 75.06l/s
  • Airflow 159.03CFM
  • Noise level 47dB(A)
  • 100mm duct size
  • IPX4 rated
  • Compatible with ESEEAS speed controller
  • Dimmer style speed switch compatible
  • Includes mounting brackets
  • Suitable for indoor applications
  • Maximum transferred air temperature 45°C
  • Ambient temperature range +1°C to +40°C
  • Relative humidity up to 80%
  • Dimensions D 98mm
  • Dimensions D1 254mm
  • Dimensions B 298mm
  • Dimensions B1 258mm
  • Dimensions L 205mm
  • Dimensions L1 20mm
  • Dimensions L2 25mm
  • Dimensions L3 30mm
  • 2 year replacement warranty

Click here for Data Sheet

SKU EXVUV100
Brand Fanco
