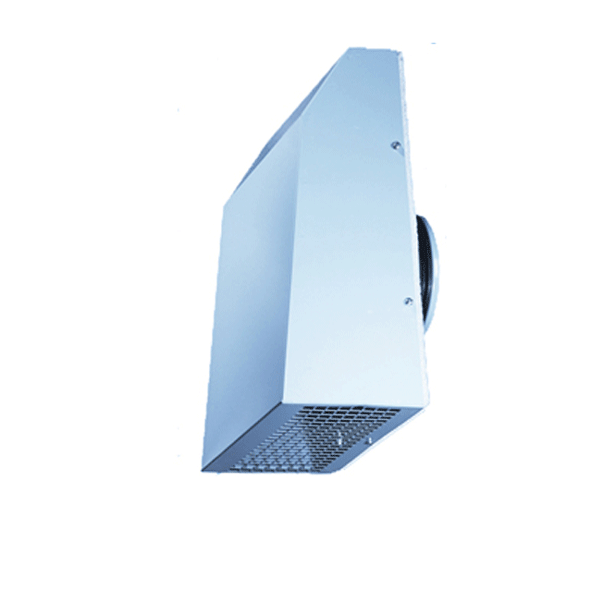

Fanco VCN 150 External Wall Mounted Centrifugal Fan 150mm

The Fanco EWVUVCN3 VCN 150 is an externally mounted centrifugal fan designed to deliver a high extraction rate along with strong ducted performance. Part of the VCN Series, this unit is ideal for residential and commercial ventilation applications where reliable airflow and external mounting are required. With European made construction and a Blauberg Motoren motor, it offers dependable performance for demanding exhaust installations. Designed for mounting on an external wall, the EWVUVCN3 expels air through the grate at the bottom of the unit and includes a rodent proof guard for added protection. It operates on 230V and delivers 630m³/hr airflow, 166.8l/s and 353.4CFM. The unit draws 0.41A, uses 96W of power and produces a noise level of 58dB(A). The specification sheet also notes IPX4 protection, thermal overheating protection, compatibility with the ESEEAS speed controller, and suitability for ambient temperatures from +1°C to +40°C with relative humidity up to 70%.

  • 150mm externally mounted centrifugal fan
  • Designed for external wall mounting
  • High extraction rate
  • Strong ducted performance
  • Suitable for residential and commercial ventilation
  • Blauberg Motoren motor
  • European made
  • 230V operation
  • 0.41A current draw
  • 96W power consumption
  • Airflow 630m³/hr
  • Airflow 166.8l/s
  • Airflow 353.4CFM
  • Noise level 58dB(A)
  • 150mm duct size
  • IPX4 rated
  • Compatible with ESEEAS speed controller
  • Dimmer style speed switch compatible
  • Thermal overheating protection
  • Rodent proof guard on underside
  • Air expelled through bottom grate
  • Maximum transferred air temperature 55°C
  • Suitable for indoor application air transfer
  • Ambient temperature range +1°C to +40°C
  • Relative humidity up to 70%
  • Dimensions D 138.2mm
  • Dimensions H 400mm
  • Dimensions B 300mm
  • Dimensions L 138mm
  • 2 year replacement warranty

Click here for Data Sheet

SKU EWVUVCN3
Brand Fanco
