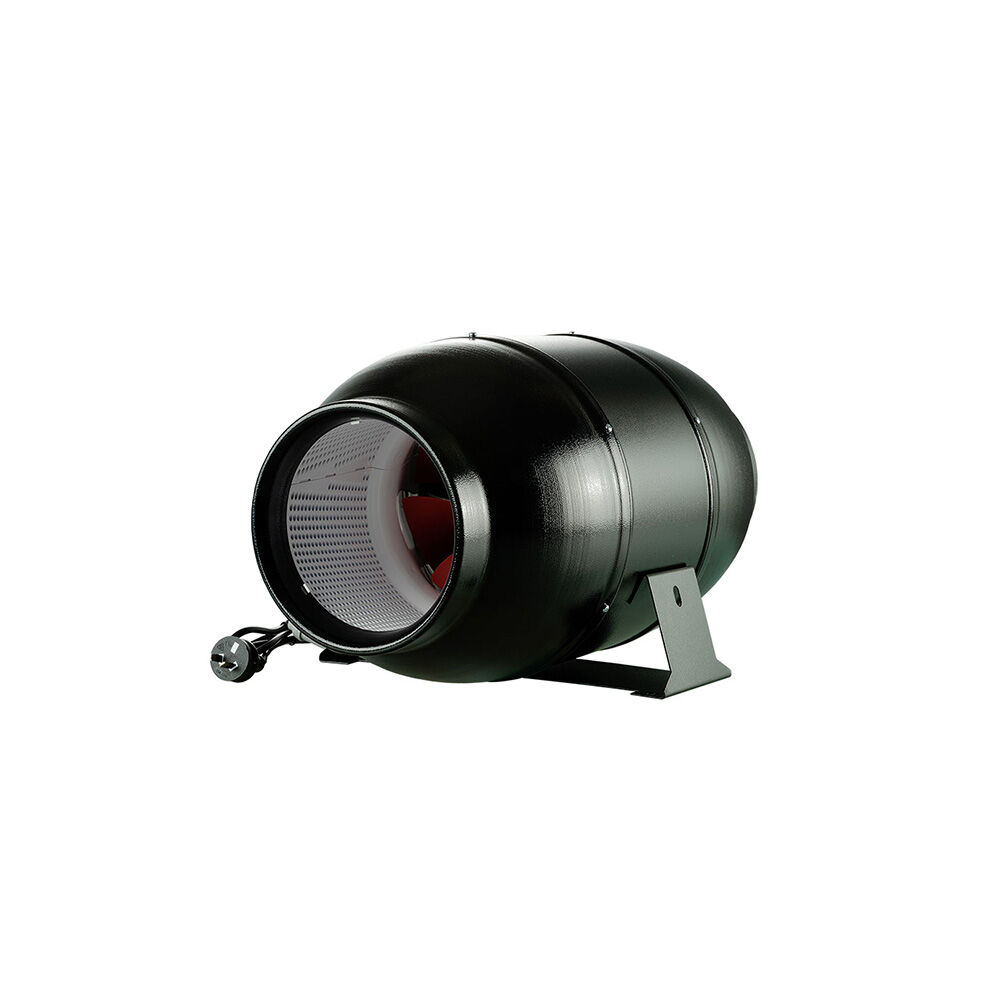

Fanco TT Silent 200 RV Premium Mixflow Inline Exhaust Fan

The Fanco EXVUTTS200RVB TT Silent 200 RV is a premium mixflow inline exhaust fan engineered to operate quietly while delivering strong airflow for residential and light commercial ventilation applications. Part of the TT Silent Series, this high performance inline fan combines low noise operation with a European motor and insulated housing, making it ideal for installations where quiet performance and long term reliability are essential. Designed for 200mm ducting, the EXVUTTS200RVB features low and high speed operation with airflow capacities of 810m³/hr and 1020m³/hr. It runs on 230V, draws 0.35A to 0.49A and uses 78W to 110W depending on the selected speed, while producing a noise level of just 31dB(A) to 36dB(A). The RV model includes a lead and plug plus a 2 position speed switch, and cannot be wired to an external speed controller. Page 2 of the spec sheet also highlights its durable polymer coated steel external housing, inner perforations engineered to absorb noise, and high quality 50mm mineral wool insulation

• TT Silent 200 RV
• Premium mixflow inline exhaust fan
• Designed for quiet operation
• European motor
• Low and high speed settings
• Airflow 810m³/hr low speed
• Airflow 1020m³/hr high speed
• Airflow 225l/s low speed
• Airflow 284l/s high speed
• Airflow 477CFM low speed
• Airflow 601CFM high speed
• Noise level 31dB(A) low speed
• Noise level 36dB(A) high speed
• 230V operation
• 0.35A / 0.49A current draw
• 78W / 110W power consumption
• 200mm duct size
• IPX4 rated
• Lead and plug included
• 2 position speed switch included
• Cannot be wired to an external speed controller
• Maximum transferred air temperature 60°C
• Suitable for indoor applications
• Ambient temperature range +1°C to +40°C
• Relative humidity up to 80%
• Durable polymer coated steel external housing
• Inner perforations engineered to absorb noise
• High quality 50mm mineral wool insulation
• Dimensions D 198mm B 293mm B1 386mm L 550mm H 295mm
• 2 year replacement warranty

Click here for Data Sheet
