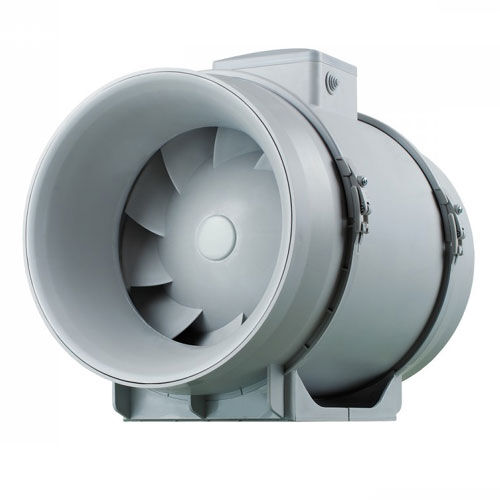

Fanco TT Mixflow 200 Inline Exhaust Fan with Lead and Plug 200mm

The Fanco EXVUTTP200RV TT Mixflow 200 is a versatile inline exhaust fan designed for both domestic and commercial ventilation applications. Part of the TT Mixflow Series, this ABS mixflow inline fan combines low noise performance with strong airflow, making it a practical choice for bathrooms, laundries, utility areas and general ducted ventilation setups. Built with a European motor and durable plastic casing, it is designed to deliver reliable everyday performance. The EXVUTTP200RV features low and high speed operation with airflow capacities of 830m³/hr and 1040m³/hr. It runs on 230V, draws 0.34A to 0.48A and uses 76W to 108W depending on the selected speed, while producing a noise level of 45dB(A) to 52dB(A). As an RV model, it includes a lead and plug plus a 2 position speed switch, and cannot be wired to an external speed controller. The spec sheet also notes that the fan is IPX4 rated, designed for indoor use, and suitable for ambient temperatures from +1°C to +40°C with relative humidity up to 80%. Its durable ABS casing and removable central motor design make it practical for installation and servicing.

• 200mm inline exhaust fan
• Suitable for domestic and commercial applications
• ABS mixflow inline fan
• Low and high speed settings
• Airflow 830m³/hr low speed
• Airflow 1040m³/hr high speed
• Airflow 230.74l/s low speed
• Airflow 289.12l/s high speed
• Airflow 488.87CFM low speed
• Airflow 612.56CFM high speed
• Noise level 45dB(A) low speed
• Noise level 52dB(A) high speed
• 230V operation
• 0.34A / 0.48A current draw
• 76W / 108W power consumption
• 200mm duct size
• IPX4 rated
• European motor
• Durable plastic casing
• Lead and plug included
• 2 position speed switch included
• Cannot be wired to an external speed controller
• Designed for indoor applications
• Maximum transferred air temperature 60°C
• Ambient temperature range +1°C to +40°C
• Relative humidity up to 80%
• Removable central motor design
• Dimensions D 199mm B 239mm L 295mm H 247mm
• 2 year replacement warranty

Click here for Data Sheet
