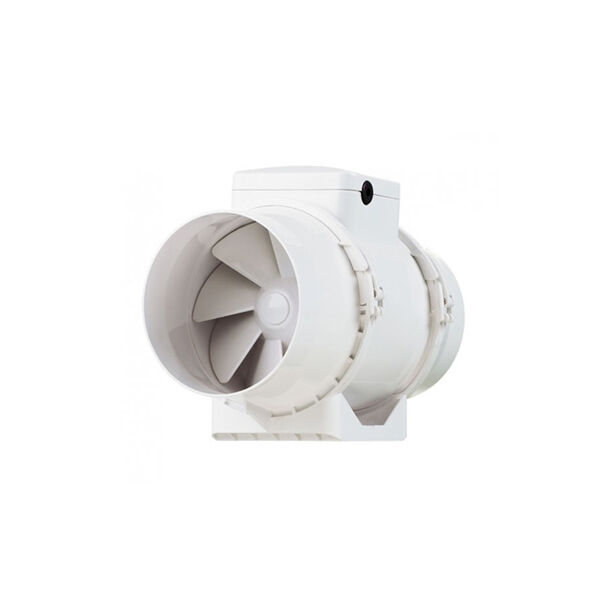

Fanco TT Mixflow 100 Inline Exhaust Fan 100mm

The Fanco EXVUTT100 TT Mixflow 100 is a compact inline exhaust fan designed for both domestic and commercial ventilation applications. Part of the TT Mixflow Series, this ABS mixflow inline fan combines low noise performance with dependable airflow, making it a practical choice for bathrooms, laundries, utility areas and general ducted ventilation setups. Built with a European motor and durable plastic casing, it is designed to deliver reliable everyday performance. The EXVUTT100 features low and high speed operation with airflow capacities of 145m³/hr and 187m³/hr. It runs on 230V, draws 0.11A to 0.21A and uses 21W to 33W depending on the selected speed, while producing a noise level of 27dB(A) to 36dB(A). The spec sheet also notes that the fan is IPX4 rated, designed for indoor use, and suitable for ambient temperatures from +1°C to +40°C with relative humidity up to 80%. Its durable ABS casing and removable central motor design make it practical for installation and servicing.

  • 100mm inline exhaust fan
  • Suitable for domestic and commercial applications
  • ABS mixflow inline fan
  • Low and high speed settings
  • Airflow 145m³/hr low speed
  • Airflow 187m³/hr high speed
  • Airflow 40.31l/s low speed
  • Airflow 51.98l/s high speed
  • Airflow 85.40CFM low speed
  • Airflow 110.14CFM high speed
  • Noise level 27dB(A) low speed
  • Noise level 36dB(A) high speed
  • 230V operation
  • 0.11A / 0.21A current draw
  • 21W / 33W power consumption
  • 100mm duct size
  • IPX4 rated
  • European motor
  • Durable plastic casing
  • Designed for indoor applications
  • Maximum transferred air temperature 60°C
  • Ambient temperature range +1°C to +40°C
  • Relative humidity up to 80%
  • Removable central motor design
  • Dimensions D 96mm B 167mm L 246mm H 190mm
  • 2 year replacement warranty

Click here for Data Sheet

SKU EXVUTT100
Brand Fanco
